Industrial panel PCs often work in harsh environments with dust, vibration, bright sunlight, and 24/7 operation. In these places, the screen must be strong and easy to read. Display bonding methods is used to join the LCD, touch panel, and front glass into a solid unit using clear adhesive. This removes the air gap between the layers. Without the air gap, reflections can drop by up to 60%, so the screen looks clearer and brighter, even in strong light. Bonding also makes the display stronger and helps protect it from dust and moisture.
Because of this, bonded displays are widely used in industrial machines, medical equipment, and outdoor systems where clear viewing and reliable performance are important.
Display Bonding Methods
Industrial panel PCs use different methods to join the LCD screen, touch panel, and front glass. The bonding method affects how clear, strong, and reliable the display will be.

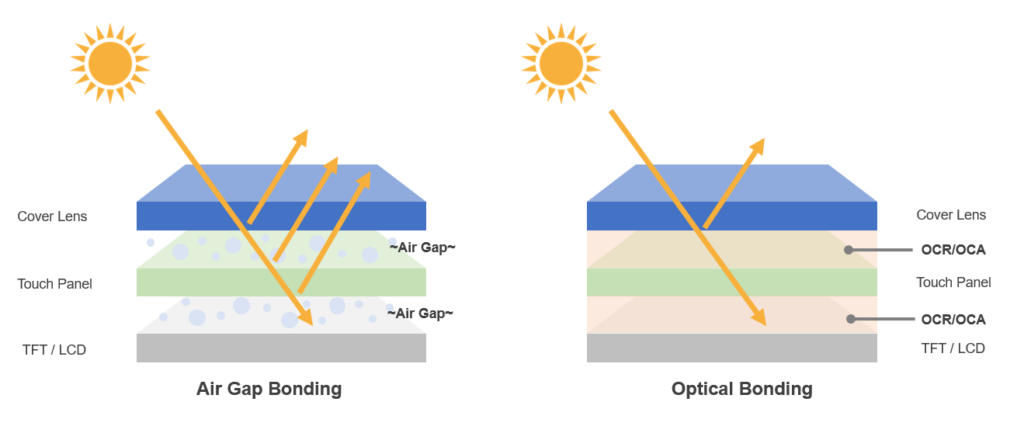

Air Gap (No Bonding):
- Basic Display Design: In this design, the cover glass is placed above the LCD screen with a layer of air between them. The layers are connected only at the edges.
- Higher Reflection: Because air remains between the layers, light reflections can increase. This may make the screen harder to read in bright light.
Tape Bonding (Edge Bonding):
- Edge Attachment Method: In tape bonding double-sided adhesive tape is used around the edges to attach the cover glass to the LCD screen.
- Air Layer in the Center: The edges are sealed, but air still remains between the layers in the center of the display.
Optical Bonding (Full Lamination):
- Fully Bonded Structure: In optical bonding a clear adhesive is used to fill the space between the LCD panel and the cover glass. This removes the air gap and joins the layers into one solid structure.
- Improved Display Quality: The screen becomes clearer, stronger, and easier to read, especially in bright environments.
Optical Bonding Techniques
Optical bonding mainly uses two techniques: OCA (Optically Clear Adhesive) and OCR (Optically Clear Resin). Both remove the air gap between the LCD panel and the cover glass, but they use different types of adhesive to join the layers.
OCA (Optically Clear Adhesive):
- Adhesive Film Layer: OCA uses a thin, clear adhesive film placed between the LCD panel and the cover glass.
- Clear Display Quality: The film holds the layers together smoothly and helps keep the image clear. It is commonly used for thin displays and small screens.
OCR (Optically Clear Resin):
- Liquid Adhesive Method: OCR uses a clear liquid resin placed between the LCD panel and the cover glass.
- Strong Bonding: The liquid spreads across the surface and then becomes solid with heat or UV light. This fills small gaps and reduces air bubbles, making it suitable for larger displays and industrial panel PCs.
How to choose between OCA and OCR:
The choice between OCA and OCR depends on the size and design of the display, as well as the required strength and performance. OCA (Optically Clear Adhesive) is usually used for thinner displays. It provides a clean and even bond with very good image clarity. OCR (Optically Clear Resin) is normally used for larger displays or industrial panel PCs that need stronger bonding and better durability.
Impact on performance and Comparison of DisplayBonding Methods
| Feature | Air Gap | Tape Bonding (Edge Bonding) | Optical Bonding (Full Lamination) |
| Bonding Structure | Air space between LCD and cover glass | Adhesive tape at edges, air remains in center | Transparent adhesive fills the full gap |
| Production Cost | Very low | Low | Higher |
| Manufacturing Process | Simple assembly | Simple with edge sealing | Advanced bonding process |
| Image Clarity | Limited due to reflections | Moderate improvement | Excellent clarity |
| Internal Reflection | High | Medium | Very low |
| Sunlight Readability | Poor | Moderate | Outstanding |
| Dust Protection | Minimal | Better edge sealing | Fully sealed structure |
| Mechanical Strength | Basic | Moderate | Strong and durable |
| Shock &Vibration Resistance | Low | Medium | High |
| Touch Accuracy | Slight delay in touch response | Improved touch response | Highly precise and responsive touch |
| Typical Applications | Consumer electronics | Indoor commercial displays | Industrial, medical, and outdoor displays |
Conclusion
Display bonding plays an important role in how a screen performs over time, and understanding different Display Bonding Methods helps in choosing the right solution. Choosing the right Display bonding method helps to display the content clear, and readable in its working environment.
Air gap and tape bonding are simple and cost-effective solutions used in many products. In environments where durability, visibility, and long-term reliability are important, optical bonding is often the preferred choice.
This is why optical bonding is widely used in industrial displays and panel PCs that operate in demanding conditions.
