Features
High-Performance
Barcode
Fanless
Wireless
Multi Touch
IP65
RFID
OS
Durable Touchscreens
HDMI

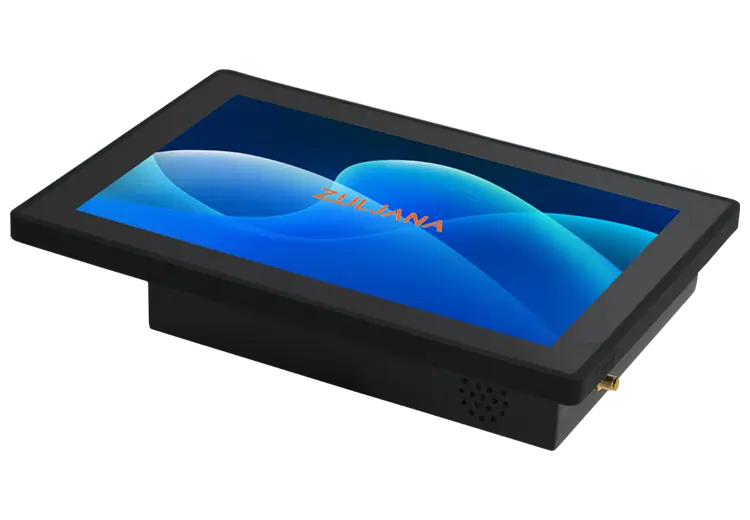

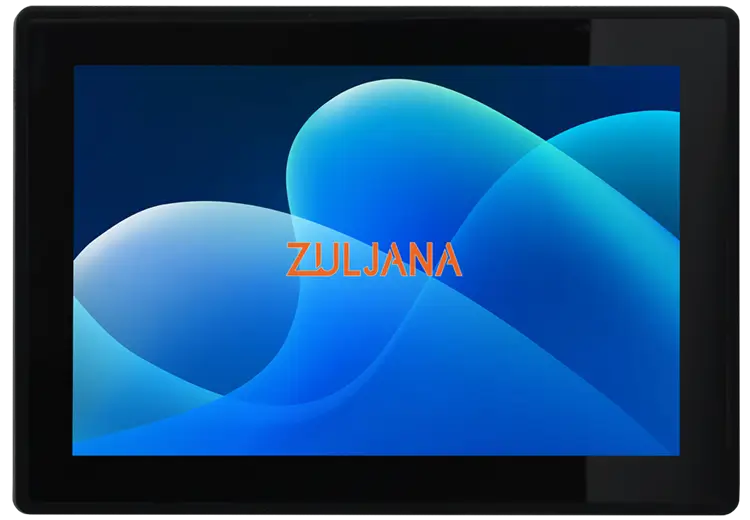

Reasons to Choose Our 10.1 Inch Industrial Panel PC
Do your business activity more efficiently with BaoBao Technology’s 10.1″ fanless touch screen pc. We offer projected 10-point capacitive multi-touch technology with tempered glass that makes it more responsive and provides scratch and impact resistance that offers an unlimited touch life (Contacts).
This is not the end BaoBao Technology also offers in their 10.1″ touch screen monitor for industrial use, a high-performance processor with pre-installed window 10, a fanless design to reduce noise, and an IP65 front rating that protects from water and dust, at market-competitive prices. If you are interested in a large size then you can also check our 15″ industrial panel mount touch screen pc.
Details Specifications
Display Characteristics
| Screen Diagonal (Inch/cm) | 10.1/25.65 |
| Aspect ratio | 16:10 |
| Brightness (cd/m²) | 300 nits (Optional) |
| Contrast | 800:1 |
| Physical resolution | 1280 x 800 |
| Reaction Time (Tr/Tf) | 10/15 |
| LED Backlight Lifetime | 20,000 (hours) |
| Visual Angle | 150/145 |
Touch Panel
| Touch Technology | Projected Capacitive 10-point Multitouch |
| Touch Panel Drivers | Windows; Linux; Mac; Android |
| Touch Life (Contacts) | Unlimited |
| Surface Hardness | 7H |
| Surface Treatment | Anti-glare（optional） |
| Glass Strengthening | Tempered Glass |
IP Rating
| IP Rating | IP65 Front / IP40 Back |
Operation/Mechanical
| Operating Temperature | -10~+60 ('C) |
| Humidity Range (RH) | 10%-90% |
| Net Weight(Kg) | 1.95 kg |
| Gross Weight(Kg) | 2.95 kg (lncl.cartonage) |
| Housing Material | Aluminum Case |
| Housing(mm)L x W x H | 259.0 x 178 x 48.50 |

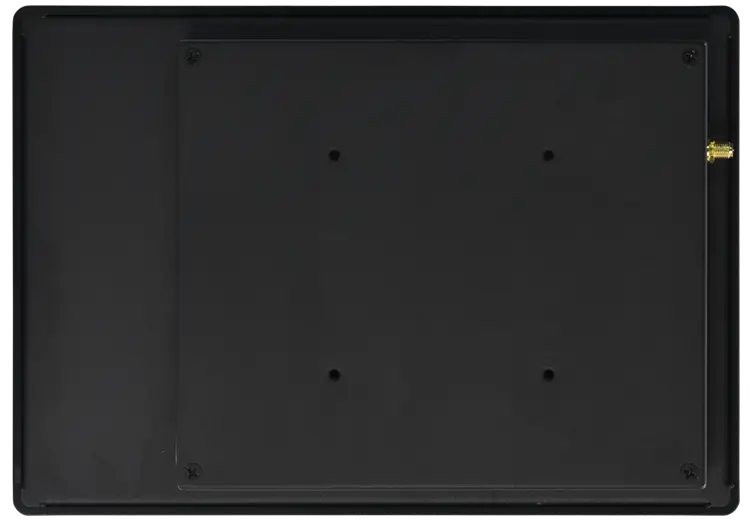

| Mounting | VESA 75 |
Power
| Power Indicator | Green LED |
| Power Supply | 12V DC-IN |
Android System
| CPU Chipset | RockChip RK3568 |
| System Memory | 4GB RAM |
| Flash Memory | 64GB ROM |
| Pre Installed | Android 11 |

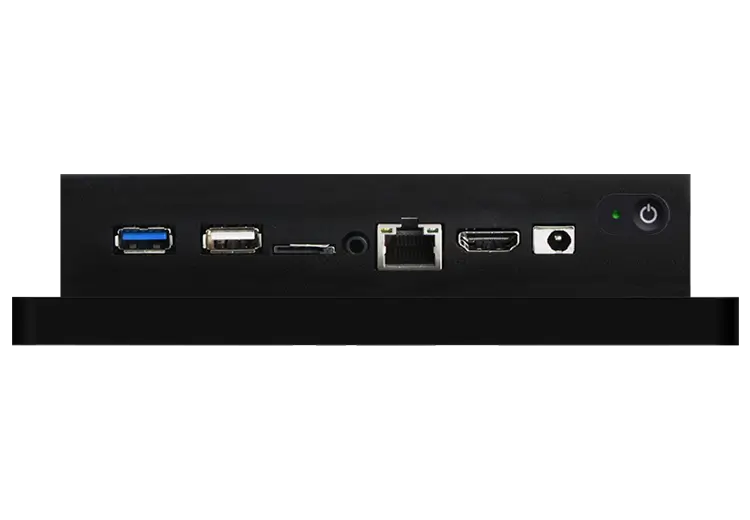

Included in the delivery
| Power Adapter |
| HDMI |
| USB Touch |
| Power Cable |
