Model No: ZL101TMBCAP
Capacitive Touch
Flat Design
1080P
10 Points
VESA
Anti-Glare (Optional)

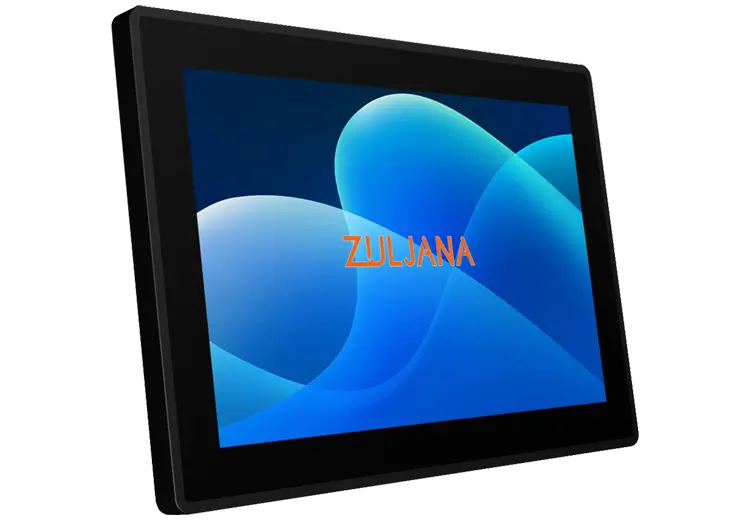

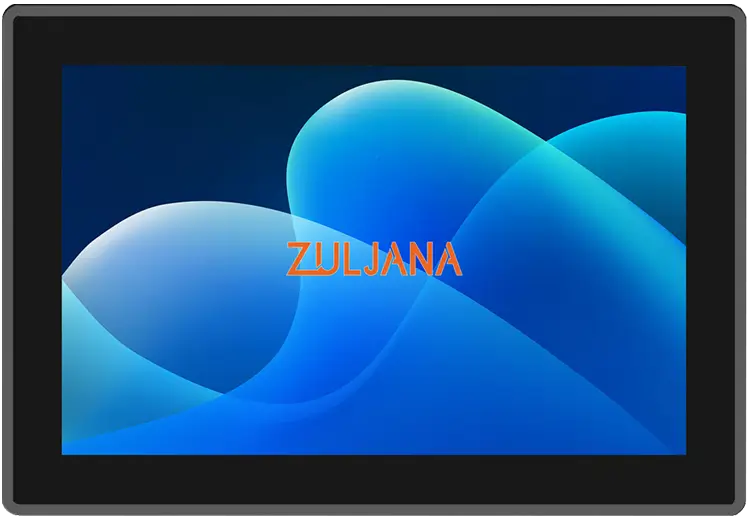

Our 10.1 inch touch screen monitor (Model No: ZL101TMBCAP) comes with an aluminum case that is specially designed for the industrial environment.
10.1 inch touch screen display offers a high-quality display, 1280×800 resolution, 10-point multitouch technology, IP65 front rating, anti-glare treatment, VESA mounting, and market-competitive prices. On the other hand, BaoBao Technology also offers a 10.4-inch industrial touchscreen monitor.
Active Display Area(cm)
21.69(H)×13.54(V）
Aspect ratio
16:10
Brightness
250 (cd/m²)
Contrast
700:1
Physical resolution
1280×800
Reaction Time (Tr/Tf)
10/15
LED Backlight Lifetime
20,000 (hours)
Visual Angle
150 (H)/145 (V)
Touch Technology
Projected Capacitive 10-point Multitouch
Touch Panel Drivers
Windows; Linux; Mac; Android
Touch Life (Contacts)
Unlimited
Surface Hardness
7H
Surface Treatment
Anti-glare（optional）
Glass Strengthening
Tempered glass
IP Rating
IP65 Front / IP40 Back
Operating Temperature
-10~+60 ('C)
Humidity Range (RH)
10%-90%
Net Weight(Kg)
1.10
Gross Weight(Kg)
2 .30( Incl .ca rtonage)
Housing Material
Aluminum front/back case
Housing(mm)L x W x H
259.0 × 178.0 × 32.0

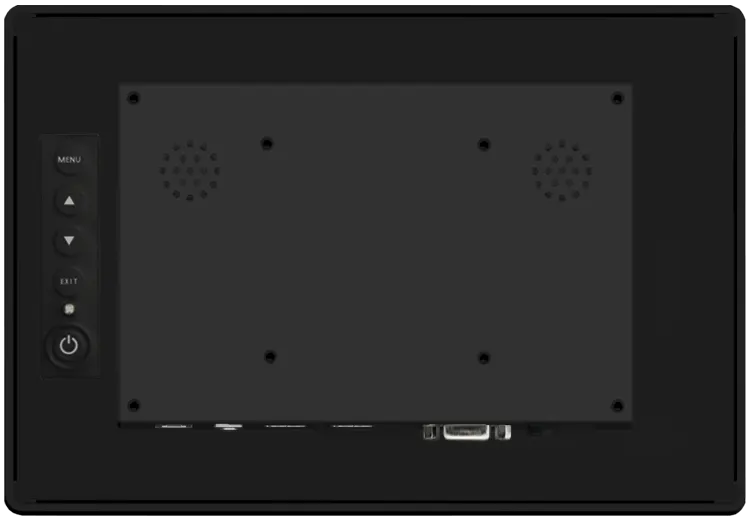

Mounting
VESA 75
Power Indicator
Green LED
Power Supply
100-240V ACDC Active Switching
Working Power (V)
12
Working Power (w)
8
Stand-By Consumption
<1

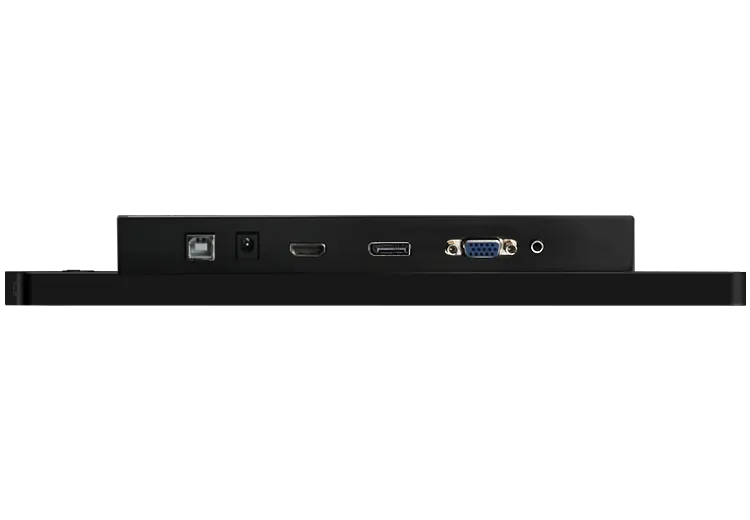

Video
lxHDMI 1.3 (lncl.HDCP)
Audio
lxPC-Audio
Touch Connector
lxUSB
Connectors
lx12V DC-IN
Power Adapter
HDMI
USB Touch
Power Cable
At BaoBao Technology we’re always happy to help you select the very best display technology for your project.
If you require any further information, pricing or technical assistance, please call us, or send us a message through the form below.
