Reasons to Choose Our 10.4 Inch Industrial Touch Screen Monitor
Our 10.4 Inch Industrial Touch Screen Monitor is perfect for factories, control rooms, and kiosks across Europe. With a clear 1024×768 resolution and 10-point touch panel, it works smoothly in automation setups in Germany, Spain, and the Netherlands. Its IP65-rated front keeps it safe from dust and water in tough environments.
The ZL104TMBCAP model has a strong aluminum body, anti-glare tempered glass, and VESA mounting for easy setup. It’s a great choice for HMI screens, embedded systems, and industrial displays in Poland, Italy, and other EU countries. Plus, our European RMA office provides quick local support when needed. BaoBao Technology also offers a 15 inch industrial touchscreen monitor. In addition, the 10.4 touch screen monitor is priced competitively and comes with good after-sale service in Europe.
Display Characteristics
| Screen Diagonal (Inch/cm) | 10.4/26.42 |
| Aspect ratio | 4:3 |
| Brightness | 350 (cd/m²) |
| Contrast | 3000:1 |
| Physical resolution | 1024x768 |
| Reaction Time (Tr/Tf) | 30 (ms) |
| LED Backlight Lifetime | 20000 (hours) |
| Visual Angle | 170 (H)/170 (V) |
Touch Panel
| Touch Technology | Projected Capacitive 10-point Multitouch |
| Touch Panel Drivers | Windows; Linux; Mac; Android |
| Touch Life (Contacts) | Unlimited |
| Surface Hardness | 7H |
| Surface Treatment | Anti-glare（optional） |
| Glass Strengthening | 10.4 Inch Industrial Touch Screen Monitor with Tempered glass |
Operation/Mechanical
| Operating Temperature ('C) | -10~+60 |
| Humidity Range (RH) | 10%-90% |
| Net Weight(Kg) | 1.50 |
| Gross Weight(Kg) | 1.90( Incl .ca rtonage) |
| Housing Material | Aluminum front/back case |
| Housing(mm)L x W x H | 27.88 X 19.96 X 3.69 |

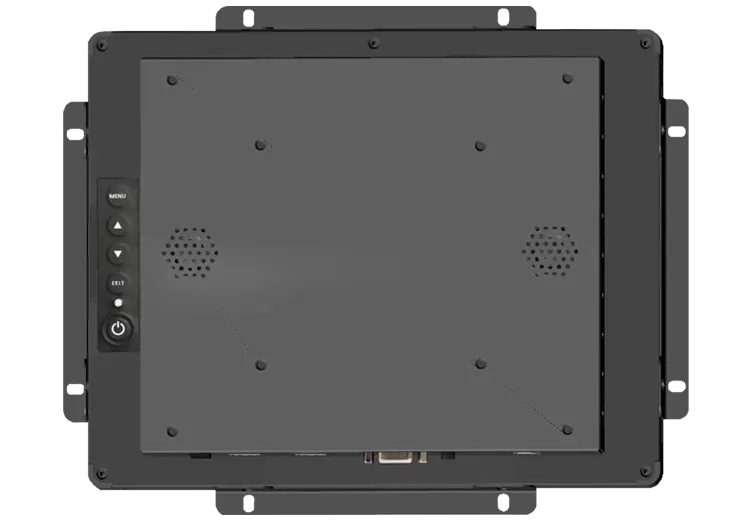

| Mounting | VESA 75 |
Power
| Power Indicator | Green LED |
| Power Supply | 100-240V ACDC Active Switching |
| Working Power (V) | 12 |
| Working Power (w) | 8 |
| Stand-By Consumption | <1 |

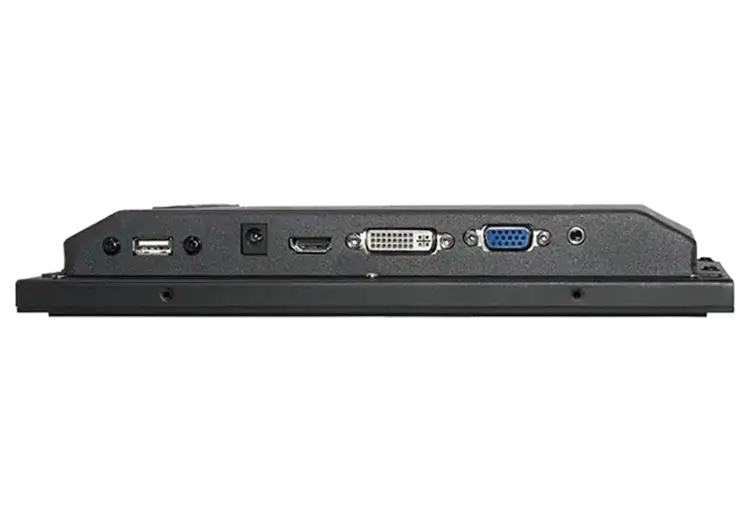

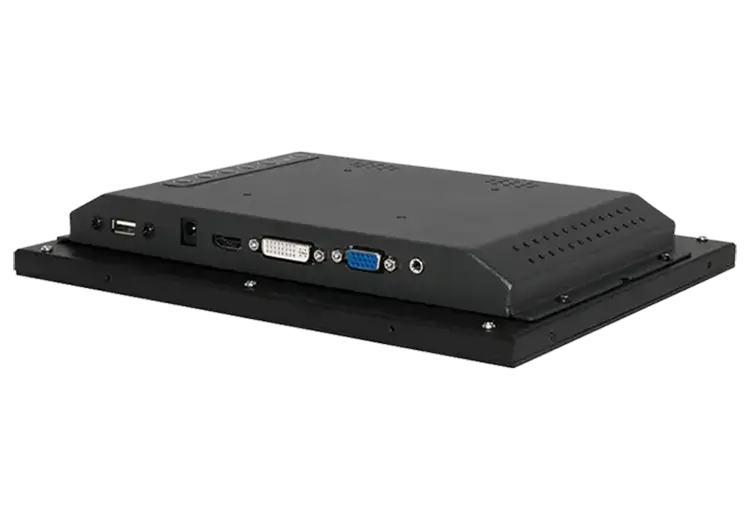

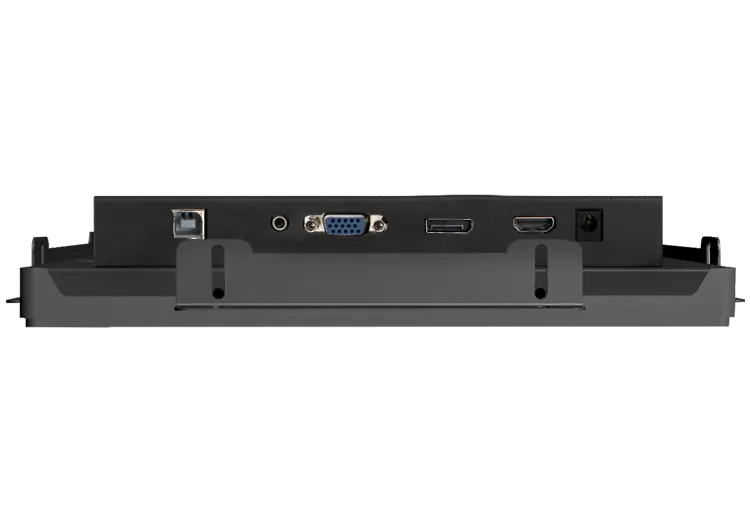

External Connectors
| Video | lxHDMI 1.3 (lncl.HDCP) |
| Audio | lxPC-Audio |
| Touch Connector | lxUSB |
| Connectors | lx12V DC-IN |
IP Rating
| IP Rating | IP65 Front / IP40 Back |
Included in the delivery
| Power Adapter |
| HDMI |
| USB Touch |
| Power Cable |
