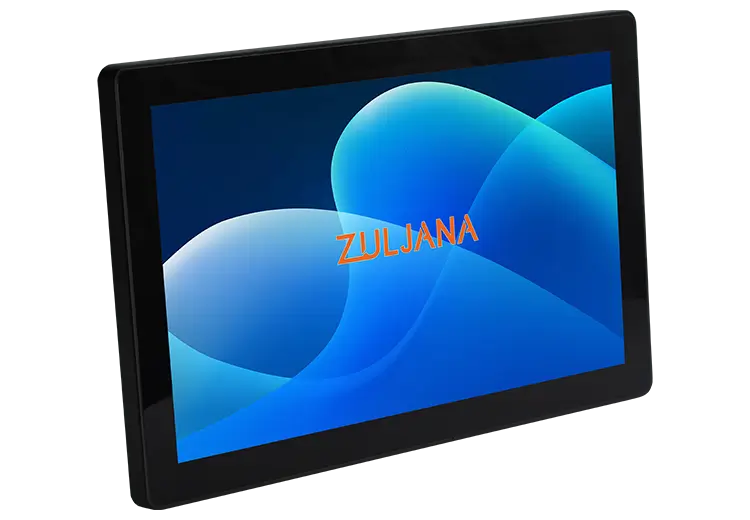

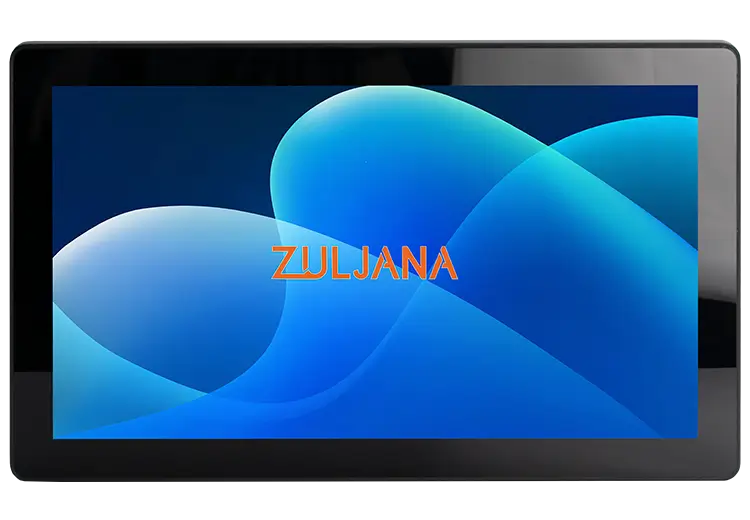

Reasons to Choose Our 15.6 Inch Android Industrial Panel PC
BaoBao Technology has the best Android industrial panel pc and 15.6″ is one of them. It comes with a fanless design that doesn’t require a cleaning process and is also helpful to operate in a wide temperature range. In our 15.6″ fanless Android industrial touch panel pc we use the durable touchscreen with tempered glass and 10-point capacitive multi-touch that is not only enhance the durability but also offer responsive touch experience even with gloves or styluses.
While the IP65 rating and aluminum case make it an ideal choice for industrial environments. BaoBao Technology has competitive prices and also offers after-sale services throughout Europe. If you are interested in a larger one then take a look at our 17″ industrial touchscreen pc.
Details Specifications
Display Characteristics
| Screen Diagonal (Inch/cm) | 15.6/39.6 |
| Aspect ratio | 16:9 |
| Brightness (cd/m²) | 250 |
| Contrast | 800:1 |
| Physical resolution | 1920x1080 |
| Reaction Time (Tr/ Tf) | 15/15 |
| LED Backlight Lifetime (hours) | 15,000 |
| Visual Angle | 170 (H)/170 (V) |
Touch Panel
| Touch Technology | Projected Capacitive 10-point Multitouch |
| Touch Panel Drivers | Android |
| Touch Life (Contacts) | Unlimited |
| Surface Hardness | 7H |
| Surface Treatment | Anti-glare（optional） |
| Glass Strengthening | Tempered glass |
IP Rating
| IP Rating | IP65 Front / IP40 Back |
Operation/Mechanical
| Operating Temperature | -10 - +60 |
| Humidity Range (RH) | 10%-90% |
| Net Weight(Kg) | 3.35 |
| Gross Weight(Kg) | 4.35 (incl. cartonage) |
| Housing(mm)L x W x H | 278.93 × 354.93 × 46.5 |

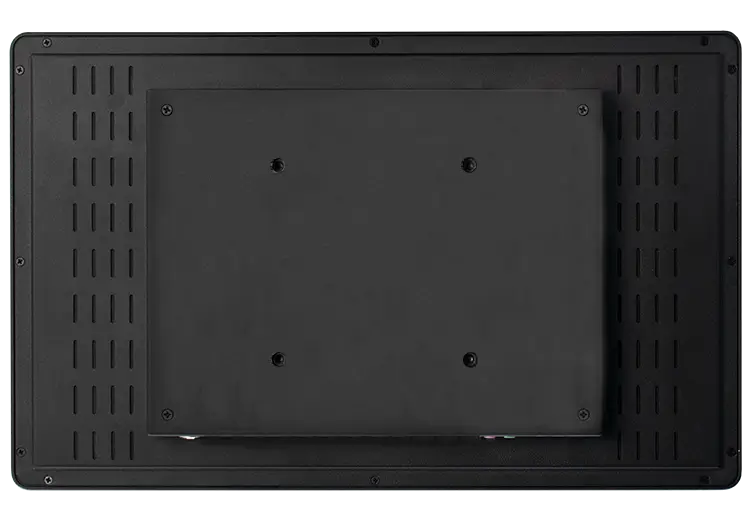

| Mounting | VESA 100 |
Power
| Power Indicator | Green LED |
| Power Supply | 100-240V ACDC active switching; 12V DC-Out |
| Working Power (V) | 12 |
| Working Power (w) | 27 |
| Stand-By Consumption | <1 |
PC System
| CPU Chipset | RockChip 3568 |
| System Memory | 4GB RAM |
| Flash Memory | 64GB ROM |
| Pre Installed | Android 11 |
Included in the delivery
| Power Adapter |
| HDMI |
| USB Touch |
| Power Cable |

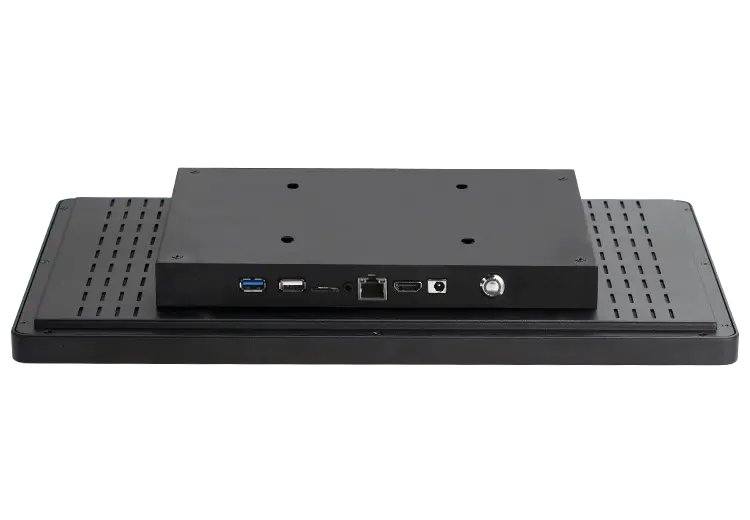

External Connectors
| Video | 1x HDMI 1.3 (incl. HDCP) 1x DVI-D 1x VGA |
| Audio | 1x PC-Audio |
| Touch Connector | 1x USB |
| Connectors | 1x Serial 1x 12V DC-I |
| Ordering information | 15” Open Frame Capacitive Touch Screen Monitor |
