Model No: ZL156PC-C
High-Performance
Barcode
Fanless
Wireless
Multi Touch
IP65
RFID
OS
Durable Touchscreens
HDMI

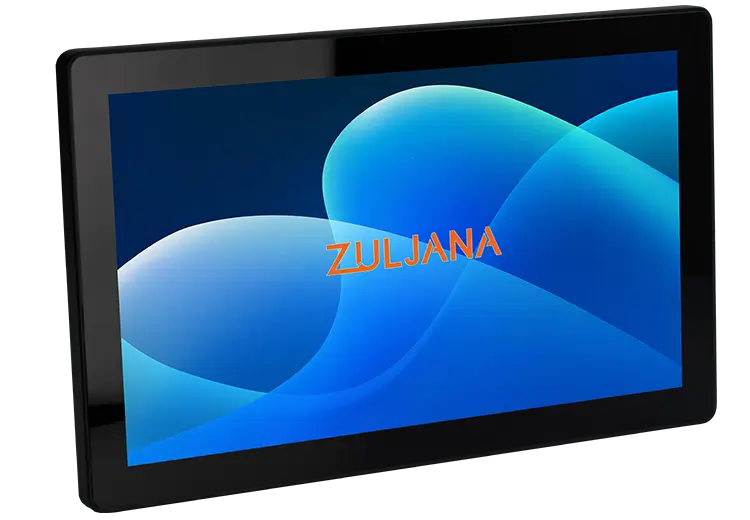

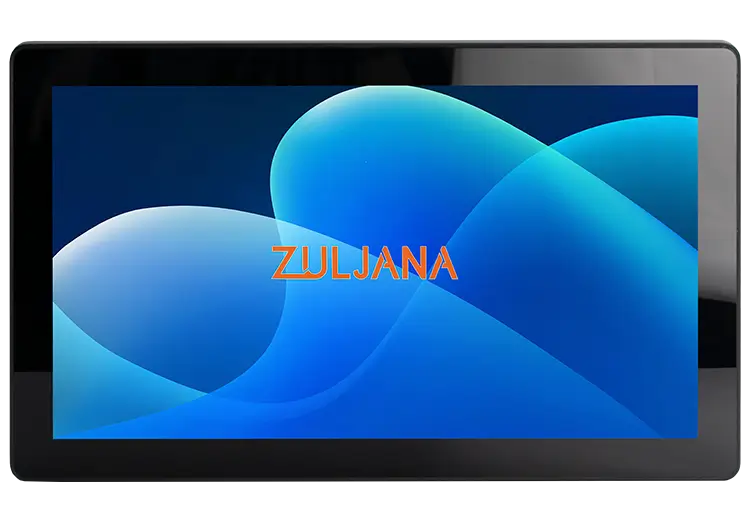

BaoBao Technology has the best industrial panel pc and 15.6″ is one of them. It comes with a fanless design that doesn’t require a cleaning process and is also helpful to operate in a wide temperature range. In our 15.6″ fanless industrial touch panel pc we use the durable touchscreen with tempered glass and 10-point capacitive multi-touch that is not only enhance the durability but also offer responsive touch experience even with gloves or styluses.
While the IP65 rating and aluminum case make it an ideal choice for industrial environments. BaoBao Technology has competitive prices and also offers after-sale services throughout Europe. If you are interested in a larger one then take a look at our 17″ industrial touchscreen pc.
Screen Diagonal (Inch/cm)
15.6/39.6
Aspect ratio
16:9
Brightness (cd/m²)
250
Contrast
800:1
Physical resolution
1920x1080
Reaction Time (Tr/ Tf)
15/15
LED Backlight Lifetime (hours)
15,000
Visual Angle
170 (H)/170 (V)
Touch technology
Projected Capacitive 10-point Multitouch
Touch Panel Drivers
Windows; Linux; Mac; Android
Touch Life (Contacts)
Unlimited
Surface Hardness
7H
Surface Treatment
Anti-glare (optional)
Glass Strengthening
Tempered glass
Operating Temperature (°C)
-10 - +60
Humidity Range (RH)
10%-90%
Net Weight(Kg)
3.35
Gross Weight(Kg)
4.35 (incl. cartonage)
Housing(mm)L x W x H
278.93 × 354.93 × 46.5

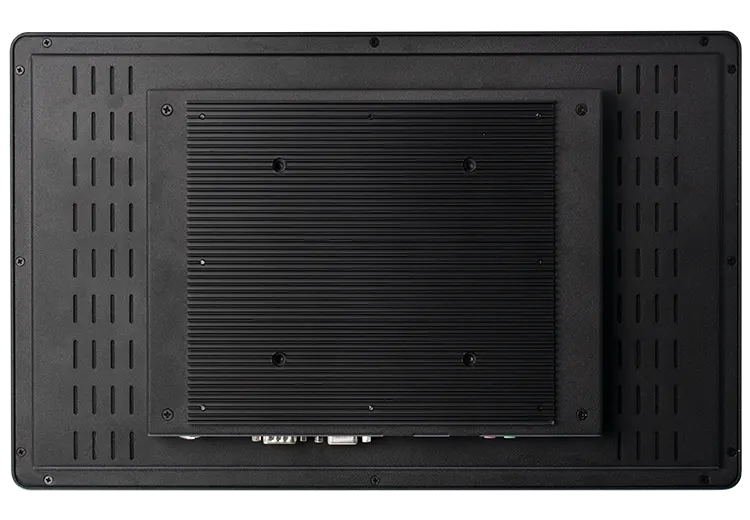

Mounting
VESA 100
Power Indicator
Green LED
Power Supply
100-240V ACDC active switching; 12V DC-Out
Working Power (V)
12
Working Power (w)
27
Stand-By Consumption
<1
Video
1x HDMI 1.3 (incl. HDCP) 1x DVI-D 1x VGA
Audio
1x PC-Audio
Touch Connector
1x USB

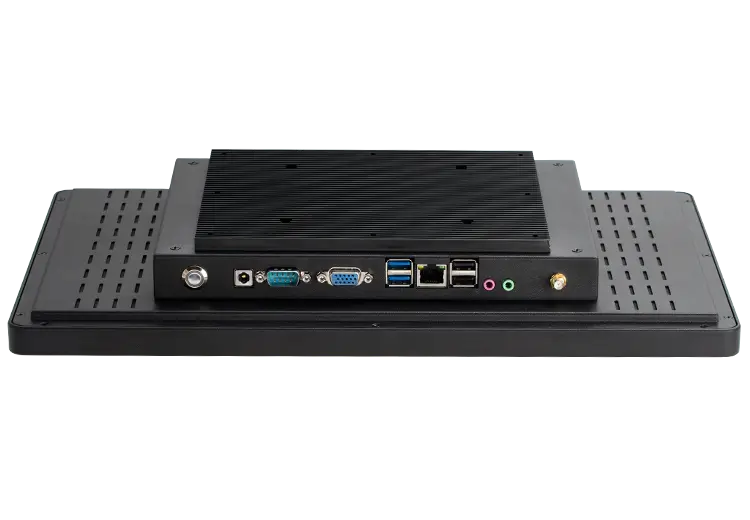

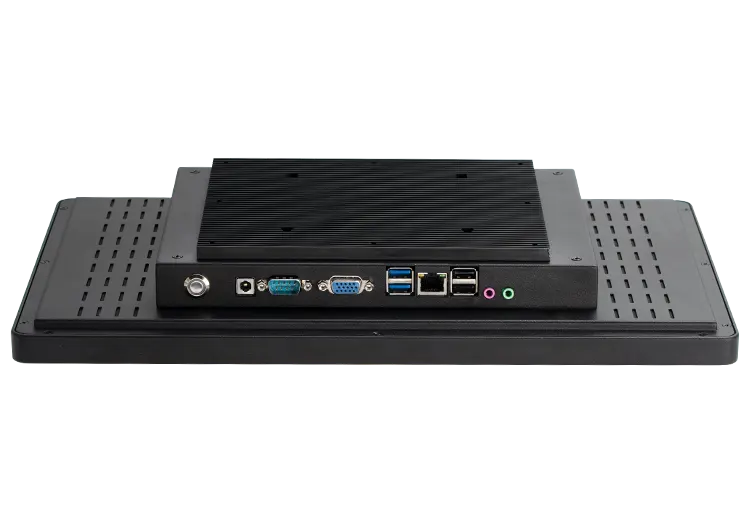

Connectors
1x Serial 1x 12V DC-I
Ordering information
15” Open Frame Capacitive Touch Screen Monitor
CPU Chipset
Intel® Celeron® J6412 / RockChip 3568
System Memory
4GB RAM
Flash Memory
64GB ROM
Pre Installed
Windows 11 / Android 11
IP Rating
IP65 Front / IP40 Back
Power Adapter
HDMI
USB Touch
Power Cable
At BaoBao Technology we’re always happy to help you select the very best display technology for your project.
