Capacitive Touch
Flat Design
1080P
10 Points
VESA
Anti-Glare (Optional)

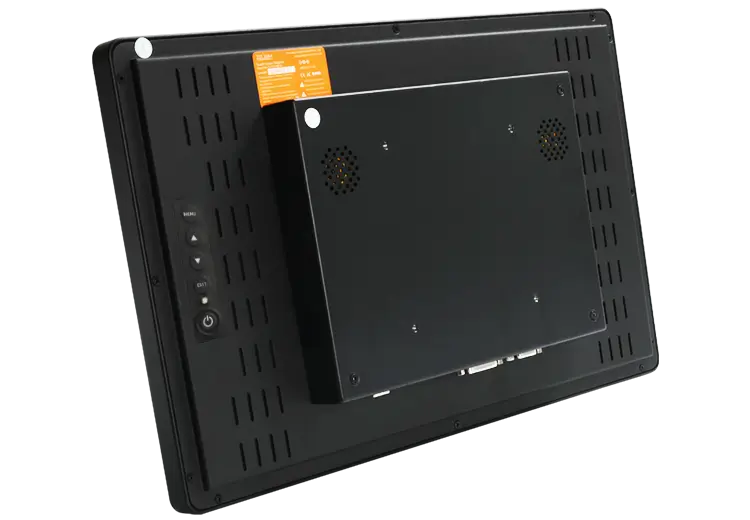

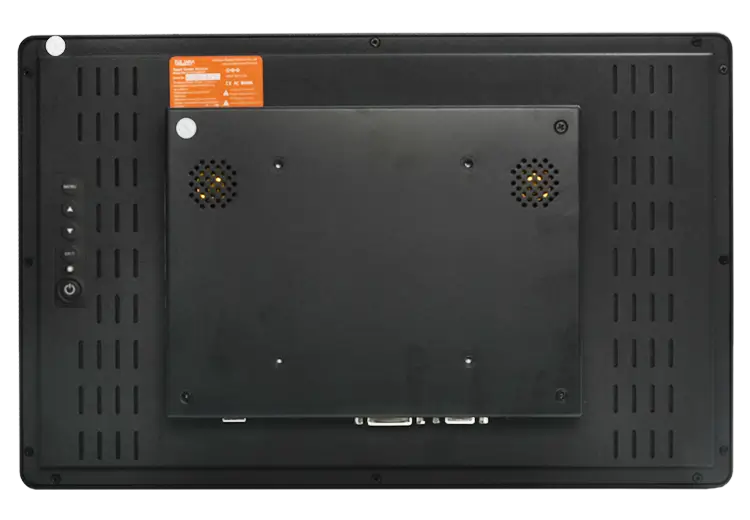

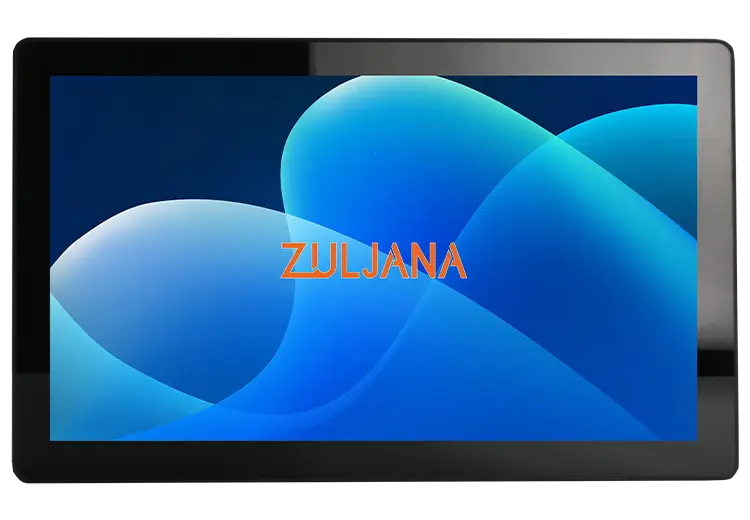

Reasons to Choose Our 15.6 Inch Industrial Touchscreen Monitor
In our 15.6″ industrial touchscreen monitors, we offer a high-quality display with a sharp 1920×1080 resolution, that will give you a better viewing experience. While the aluminum case and IP65 rating front rating protect your monitor from dust and water.
At a market-competitive price, we also offer 10-point multitouch technology, anti-glare treatment, and VESA mounting for better flexibility. BaoBao Technology also offers a 17 inch industrial touchscreen monitor.
Display Characteristics
| Screen Diagonal (Inch/cm) | 15.6/39.48 |
| Aspect ratio | 16:9 |
| Brightness | 300 (cd/m²) |
| Contrast | 800:1 |
| Physical resolution | 1920×1080 |
| Reaction Time (Tr/Tf) | 170/170 |
| LED Backlight Lifetime | 15000 (hours) |
| Visual Angle | 160/160 |
Touch Panel
| Touch Technology | Projected Capacitive 10-point Multitouch |
| Touch Panel Drivers | Windows; Linux; Mac; Android |
| Touch Life (Contacts) | Unlimited |
| Surface Hardness | 7H |
| Surface Treatment | Anti-glare（optional） |
| Glass Strengthening | Tempered glass |
Operation/Mechanical
| Operating Temperature (°C) | -10~+60 |
| Humidity Range (RH) | 10%-90% |
| Net Weight(Kg) | 4.20 |
| Gross Weight(Kg) | 5.50(Incl.cartonage) |
| Housing Material | Aluminum front/back case |
| Housing(mm)L x W x H | 391.21 × 241.52 × 46 |
| Mounting | VESA 100 |
Power
| Power Indicator | Green LED |
| Power Supply | 100-240V ACDC Active Switching; 12V DC-Out |
| Working Power (V) | 12 |
| Working Power (w) | 12 |
| Stand-By Consumption | <1 |

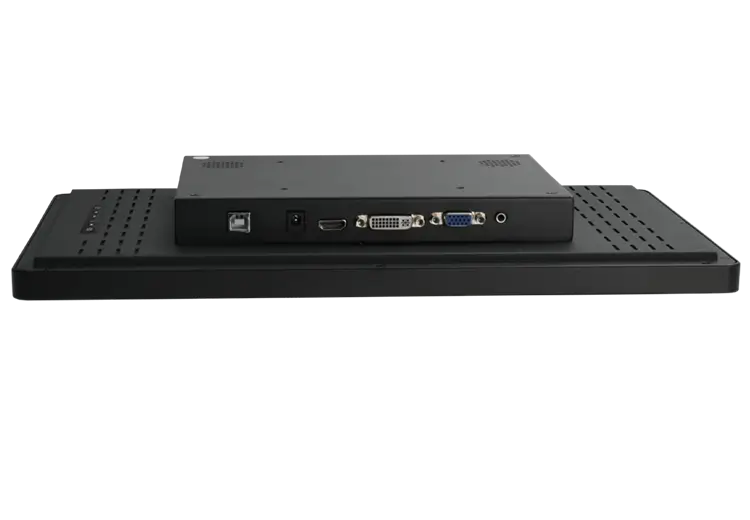

External Connectors
| Video | 1×HDMI 1.3 (Incl.HDCP) 1 × DVI-D 1 × VGA |
| Audio | 1×PC-Audio |
| Touch Connector | 1×USB |
| Connectors | 1×12V DC-IN |
| Ordering information | 15.6 "LCD,250 nits(Optional),800:1,1920×1080 pixels,34.53(H）×19.46(V),LED Backlight |
IP Rating
| IP Rating | IP65 Front / IP40 Back |
Included in the delivery
| Power Adapter |
| HDMI |
| USB Touch |
| Power Cable |
