Features
Capacitive Touch
Flat Design
1080P
10 Points
VESA
Anti-Glare (Optional)
Reasons to Choose Our 15.6 Inch Open Frame Touch Screen Monitor
Our 15.6 Inch Open Frame Touch Screen Monitor gives you an industrial-grade solution at market-competitive prices with after sales service. A high-quality 1366×768 resolution display with a robust, flat design gives you amazing image clearness and light transmission.
While our Open frame monitor 15.6 inch come with 10-point capacitive multi-touch technology that gives a better responsive touch experience. This product is made with durable aluminum and tempered glass and has a lifetime LED backlight that lasts for 30,000 hours. BaoBao Technology also offers a 17 Inch Open Frame Touch Screen Monitor.
Display Characteristics
| Screen Diagonal (Inch/cm) | 15.6/39.48 |
| Aspect ratio | 16:9 |
| Brightness (cd/m²) | 250 (cd/m²) |
| Contrast | 800:1 |
| Physical resolution | 1920×1080 |
| Typical Reaction Time Tr/ Tf (ms) | 15/15 |
| LED Backlight Lifetime | 30,000 (Hours) |
| Visual Angle Horizontal / Verticle | 170/170 |
Touch Panel
| Touch Technology | Projected Capacitive 10-point Multitouch |
| Touch Panel Drivers | Windows; Linux; Mac; Android |
| Touch Life (Contacts) | Unlimited |
| Surface Hardness | 7H |
| Surface Treatment | Anti-glare（optional） |
| Glass Strengthening | Tempered glass |
IP Rating
| IP Rating | IP65 Front / IP40 Back |
Operation/Mechanical
| Operating Temperature (°C) | -10 - +60 |
| Humidity Range (RH) | 10%-90% |
| Net Weight(Kg) | 3.05 |
| Gross Weight(Kg) | 4.20 (incl. cartonage) |
| Housing Material | Aluminum |
| Housing(mm)L x W x H | 241.59 × 392.16 × 48 |
| Mounting | VESA 100 |
Power
| Power Indicator | Green LED |
| Power Supply | 100-240V ACDC active switching;12V DC-Out |
| Working Power (V) | 12 |
| Working Power (w) | 17 |
| Stand-By Consumption | <1 |

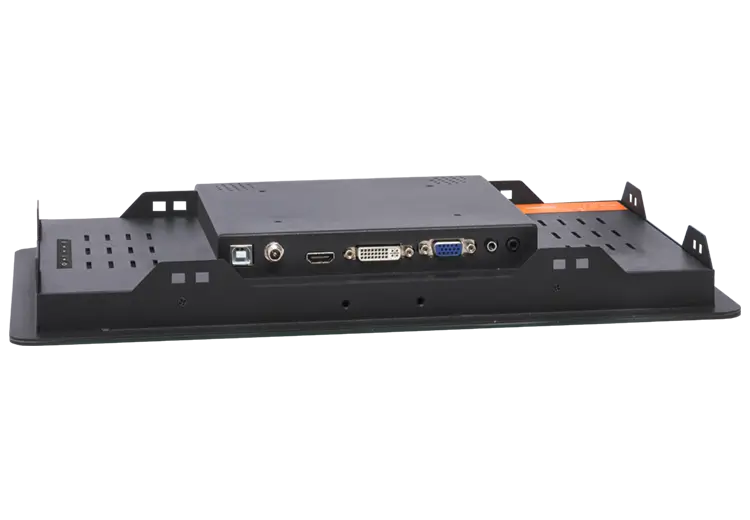

External Connectors
| Video | 1x HDMI 1.3 (incl. HDCP) 1x DVI-D 1x VGA |
| Audio | 1x PC-Audio |
| Touch Connector | lxUSB |
| Connectors | 1x Serial 1x 12V DC-In |
| Included in the Delivery | Power Supply, Cables: HMDI, USB Touch |
Included in the delivery
| Power Adapter |
| HDMI |
| USB Touch |
| Power Cable |
