Features
High-Performance
Barcode
Fanless
Wireless
Multi Touch
IP65
RFID
OS
Durable Touchscreens
HDMI

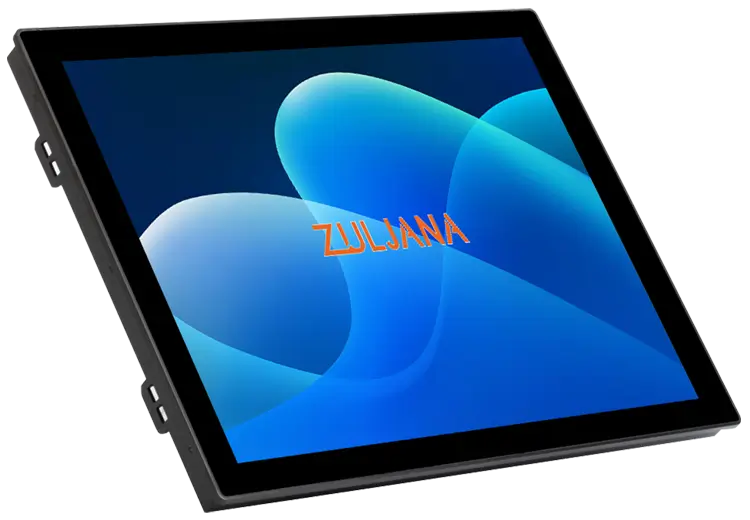

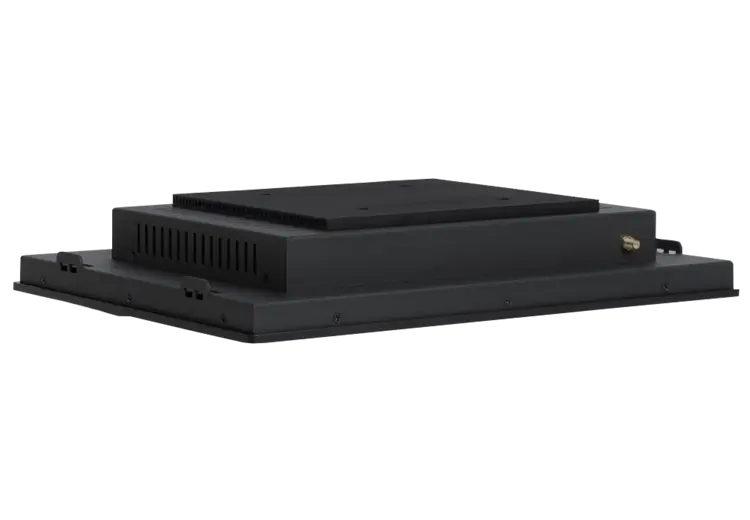

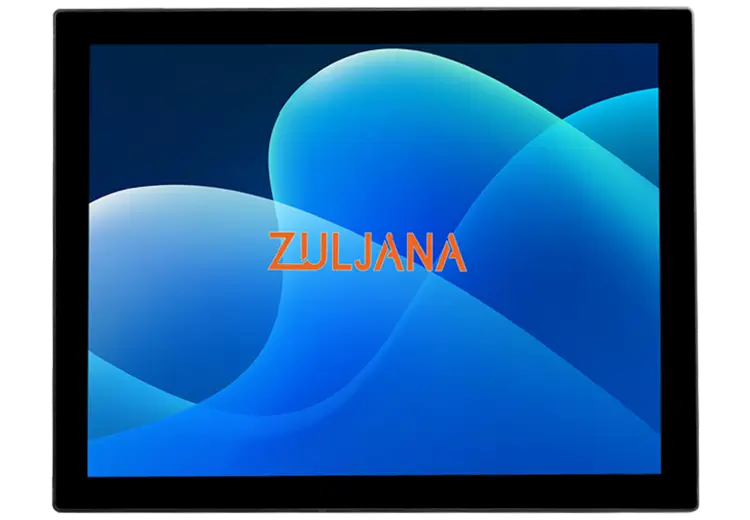

Reasons to Choose Our 15 Inch Industrial Panel PC
Hold on tight, and prepare yourself for a better commercial experience with our 15″ fanless touch screen computer. In our 15″ industrial touch panel pc we offer a high-resolution display with a durable touchscreen that shows bright and clear images.
On the other hand, aluminum housing, high-performance processors, ip65 touch screen PC, and fanless design make 15 panel pc ideal for handling the harsh environments of industries. We also offer market-competitive prices and after-sale service throughout Europe. You can also take a look at our 15.6″ industrial fanless touch screen PC.
Details Specifications
Display Characteristics
| Screen Diagonal (Inch/cm) | 15/38.14 |
| Active Display Area(cm) | 30.5×22.9 |
| Aspect ratio | 4:3 |
| Brightness | 300 (cd/m²) |
| Contrast | 800:1 |
| Physical resolution | 1024×768 |
| Reaction Time (Tr/Tf) | 15/15 |
| LED Backlight Lifetime | LED/30,000 |
Touch Panel
| Touch Technology | Projected Capacitive 10-point Multitouch |
| Touch Panel Drivers | Windows; Linux; Mac; Android |
| Touch Life (Contacts) | Unlimited |
| Surface Hardness | 7H |
| Surface Treatment | Anti-glare（optional） |
| Glass Strengthening | Tempered glass |
IP Rating
| IP Rating | IP65 Front / IP40 Back |
Operation/Mechanical
| Operating Temperature | -10~+60 ('C) |
| Humidity Range (RH) | 10%-90% |
| Net Weight(Kg) | 3.35 |
| Gross Weight(Kg) | 4.35 (incl. cartonage) |
| Housing(mm)L x W x H | 278.93 × 354.93 × 46.5 |
| Mounting | VESA 100 |
Power
| Power Indicator | Green LED |
| Power Supply | 100-240V ACDC active switching; 12V DC-Out |
| Working Power (V) | 12 |
| Working Power (w) | 27 |
| Stand-By Consumption | <1 |
PC System
| CPU Chipset | Intel® Celeron® J6412 / RockChip 3568 |
| System Memory | 4GB RAM |
| Flash Memory | 64GB ROM |
| Pre Installed | Windows 11 / Android 11 |
Included in the delivery
| Power Adapter |
| HDMI |
| USB Touch |
| Power Cable |
External Connectors
| Video | 1x HDMI 1.3 (incl. HDCP) 1x DVI-D 1x VGA |
| Audio | 1x PC-Audio |
| Touch Connector | 1x USB |
| Connectors | 1x Serial 1x 12V DC-I |
| Ordering information | 15” Open Frame Capacitive Touch Screen Monitor |
