Features
High-Performance
Barcode
Fanless
Wireless
Multi Touch
IP65
RFID
OS
Durable Touchscreens
HDMI

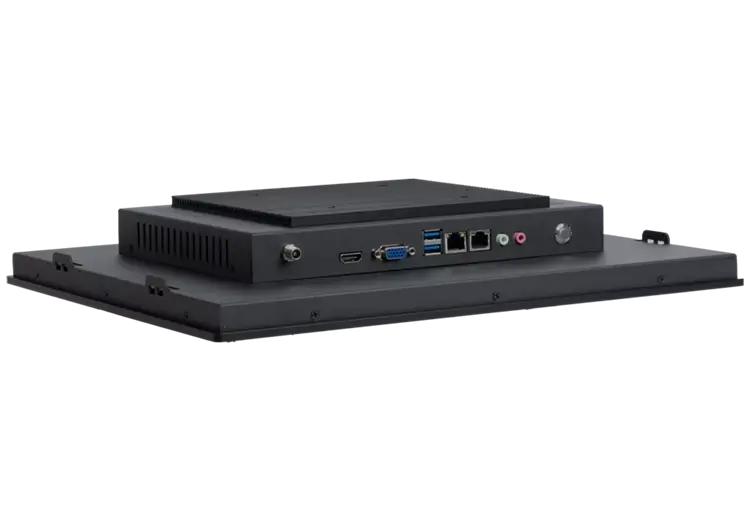

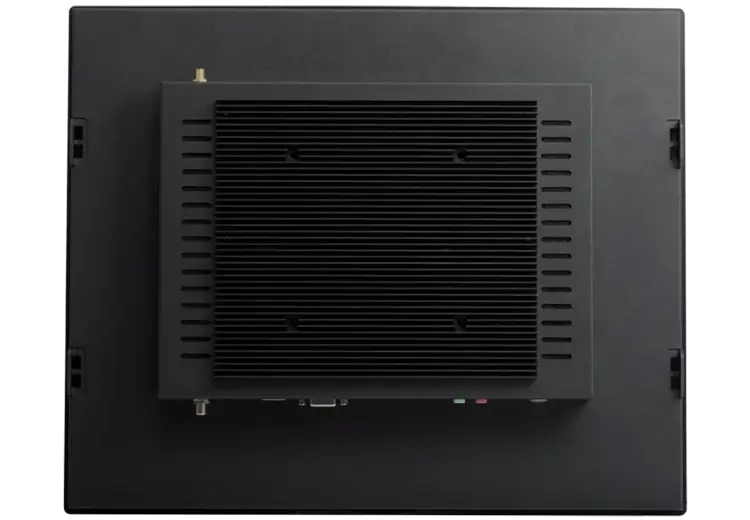

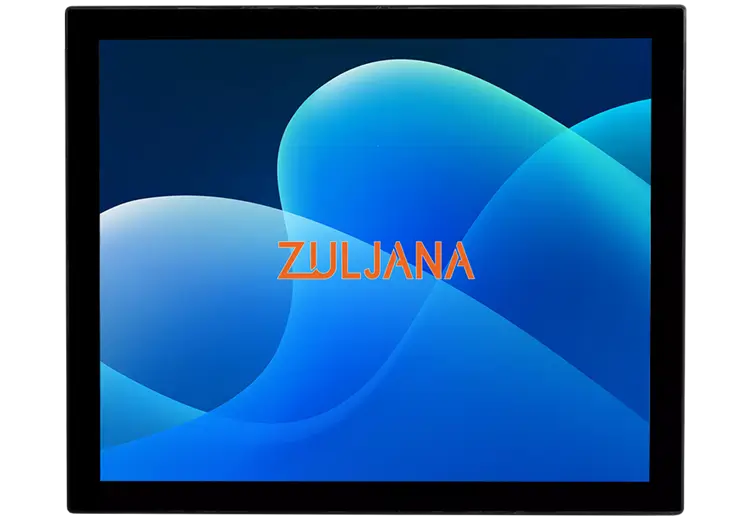

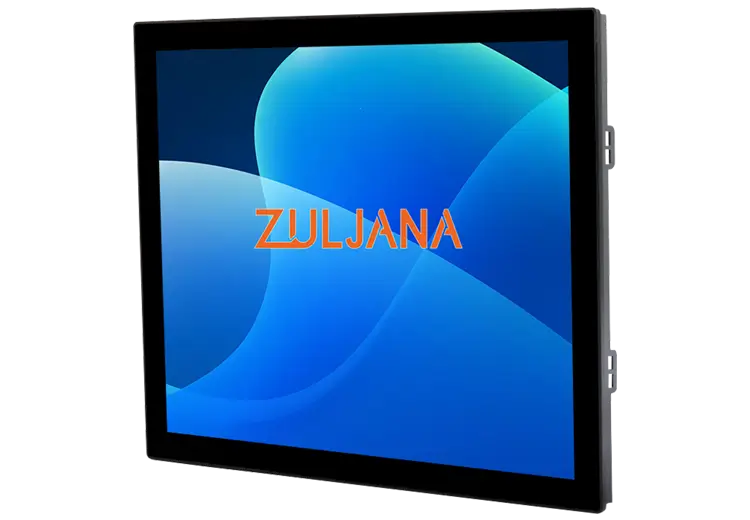

Reasons to Choose Our 17 Inch Industrial Panel PC
In our 17 Inch Industrial Panel PC we offer high-performance processors, an IP65 front rating that protects from dust and water, a fanless design that reduces power consumption and noise, a durable touchscreen with high-resolution display and 10-point capacitive multi-touch that provides a better touch experience.
While the aluminum case, tempered glass, and optional anti-glare treatment make our 17″ industrial panel pc an ideal choice for harsh environments. BaoBao Technology also offers a 21.5″ industrial pc touch screen monitor.
Details Specifications
Display Characteristics
| Screen Diagonal (Inch/cm) | 17/43.18 |
| Aspect ratio | 5:4 |
| Brightness (cd/m²) | 250 |
| Contrast | 1000:1 |
| Physical resolution | 1280×768 |
| Reaction Time (Tr/ Tf) | 3.8/1.2 |
| LED Backlight Lifetime (hours) | 30,000 |
| Visual Angle | 170 (H)/160 (V) |
Touch Panel
| Touch Technology | Projected Capacitive 10-point Multitouch |
| Touch Panel Drivers | Windows; Linux; Mac; Android |
| Touch Life (Contacts) | Unlimited |
| Surface Hardness | 7H |
| Surface Treatment | Anti-glare（optional） |
| Glass Strengthening | 17 Inch Industrial Panel PC with Tempered glass |
IP Rating
| IP Rating | IP65 Front / IP40 Back |
Operation/Mechanical
| Operating Temperature | -10 – +60 |
| Humidity Range (RH) | 10%-90% |
| Net Weight(Kg) | 4.1 |
| Gross Weight(Kg) | 5.3 ( Incl .ca rtonage) |
| Housing(mm)L x W x H | 381.5 X 313.5 X 58 |
| Mounting | VESA 100 |
| Housing Material | Aluminum front/back case |
Power
| Power Indicator | Green LED |
| Power Supply | 100-240V ACDC Active Switching |
| Working Power (V) | 12 |
| Working Power (w) | 16 |
| Stand-By Consumption | <1 |
PC System
| CPU Chipset | Intel® Celeron® J6412 / RockChip 3568 |
| System Memory | 4GB RAM |
| Flash Memory | 64GB ROM |
| Pre Installed | Windows 11 / Android 11 |
Included in the delivery
| Power Adapter |
| HDMI |
| USB Touch |
| Power Cable |
