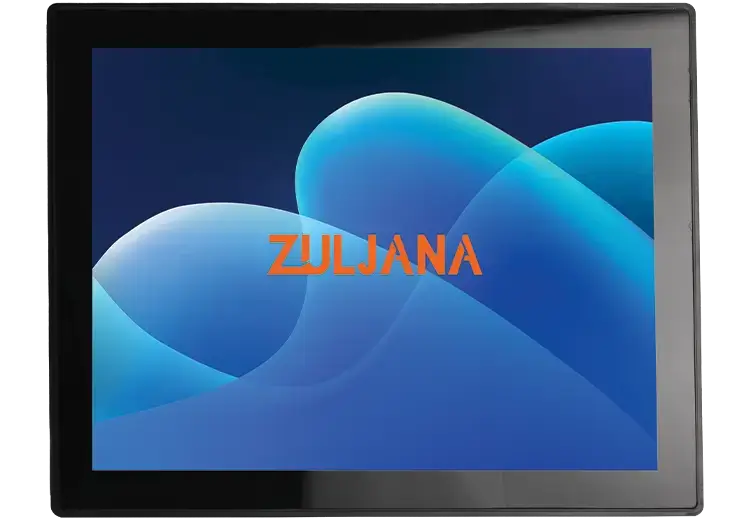

Why Choose Our 17 Inch Industrial Touch Screen Monitor?
Designed for tough industrial jobs, the 17 Inch Industrial Touch Screen Monitor features a sharp 1280×1024 display, 10-point multi-touch, and IP65 front protection. It’s a reliable choice for smart factories, automation controls, and public kiosks in Germany, Italy, and the Netherlands.
With a strong aluminum case and anti-glare tempered glass, this monitor fits well in industrial panels, HMI stations, and embedded systems. Easy VESA mounting supports fast setup across manufacturing sites in Poland, France, and Spain. Local support from the European RMA office ensures quick help when needed. BaoBao Technology also offers a 21.5 inch industrial touchscreen monitor.
Display Characteristics
| Screen Diagonal (Inch/cm) | 17/43.27 |
| Aspect ratio | 5:4 |
| Brightness | 250 (cd/m²) |
| Contrast | 1000:1 |
| Physical resolution | 1280×768 |
| Reaction Time (Tr/Tf) | 3.8/1.2 |
| LED Backlight Lifetime | 30000 (hours) |
| Visual Angle | 170 (H)/160 (V) |
Touch Panel
| Touch Technology | Projected Capacitive 10-point Multitouch |
| Touch Panel Drivers | Windows; Linux; Mac; Android |
| Touch Life (Contacts) | Unlimited |
| Surface Hardness | 7H |
| Surface Treatment | Anti-glare（optional） |
| Glass Strengthening | Tempered glass in 17 Inch Industrial Touch Screen Monitor |
Operation/Mechanical
| Operating Temperature (°C) | -10~+60 |
| Humidity Range (RH) | 10%-90% |
| Net Weight(Kg) | 5.10 |
| Gross Weight(Kg) | 6.10 (Incl.cartonage) |
| Housing Material | Aluminum front/back case |
| Housing(mm)L x W x H | 317.57 × 385.57 × 42.85 |

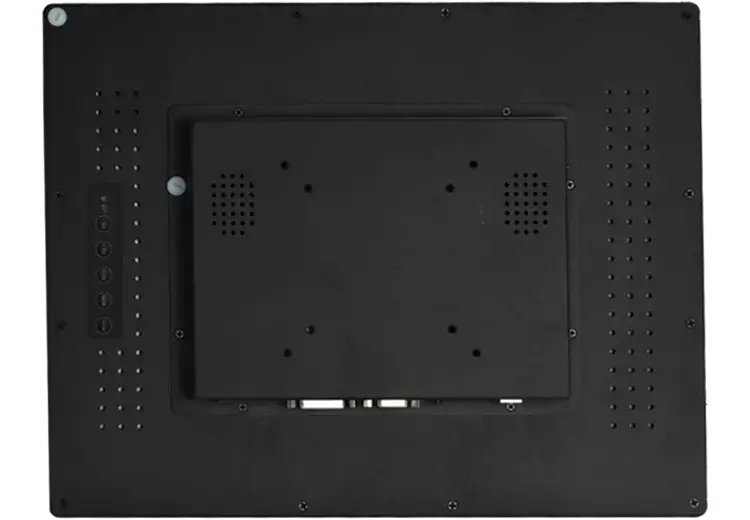

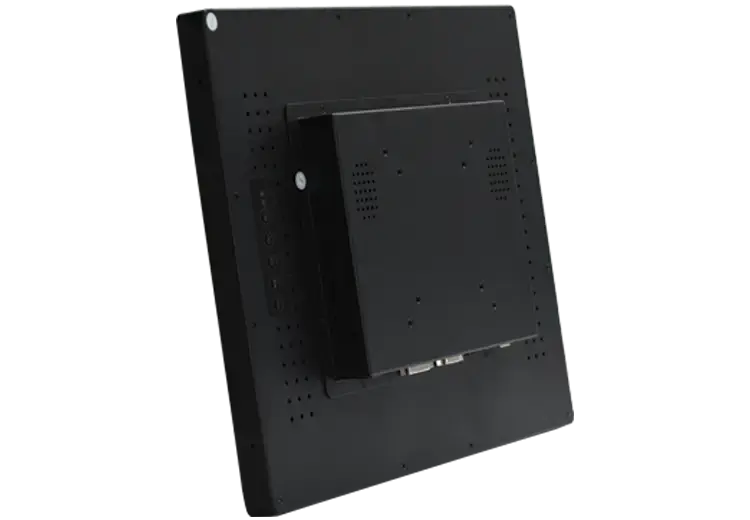

| Mounting | VESA 100 |
Power
| Power Indicator | Green LED |
| Power Supply | 12V 4.0A |
| Working Power (V) | 12 |
| Working Power (w) | 15 |
| Stand-By Consumption | <1 |

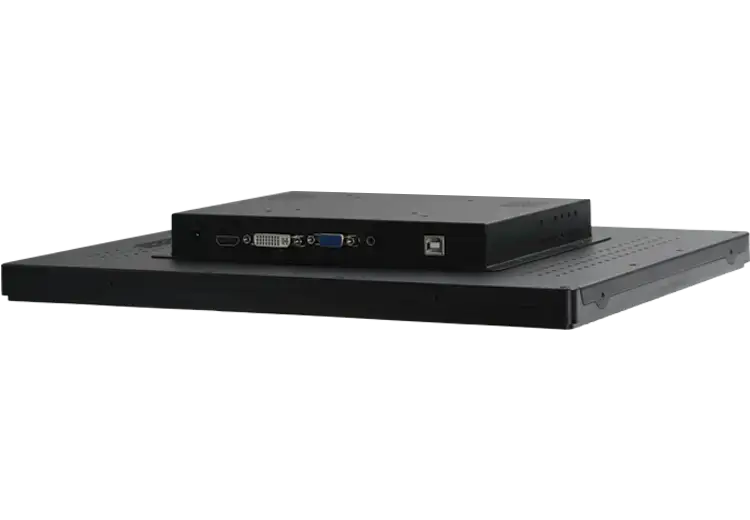

External Connectors
| Video | 1×HDMI 1.3 (Incl.HDCP) 1 × DVI-D 1 × VGA |
| Audio | 1×PC-Audio |
| Touch Connector | 1×USB |
| Connectors | 1×12V DC-IN |
| Ordering information | 17 " Capacitive Touch Screen Monitor |
IP Rating
| IP Rating | IP65 Front / IP40 Back |
Included in the delivery
| Power Adapter |
| HDMI |
| USB Touch |
| Power Cable |
