Model No: ZL17TMBCAP-OF

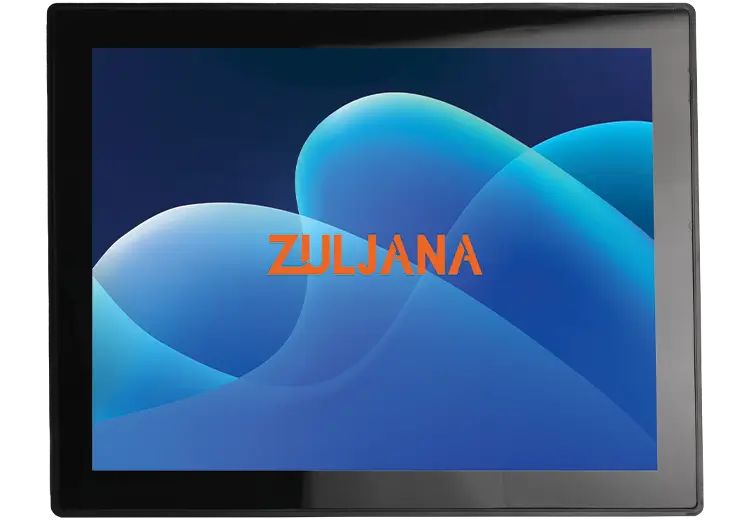

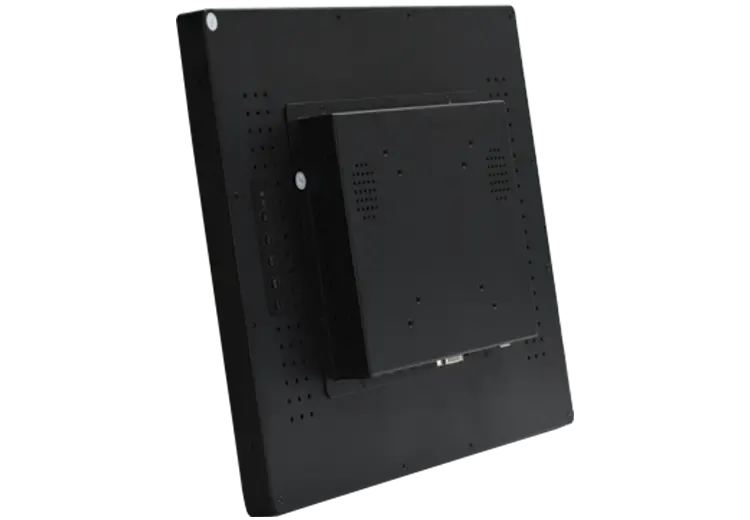

17" Open Frame Touch Screen Monitor
Features
Capacitive Touch
Flat Design
1080P
10 Points
VESA
Anti-Glare (Optional)
Reasons to Choose Our 17 Inch Open Frame Touch Screen Monitor
At BaoBao Technology, our 17 inch open frame monitor is based on a visualization module. We use a durable aluminum frame and tempered glass that enhance its durability to handle the harsh environment of industries.
In our Open frame monitor 17 inches we use a 10-point multi-touch capacitive, high-resolution display (1280×1024) with a 5:4 aspect ratio and a flat design. BaoBao Technology also offers a 21.5 Inch Open Frame Touch Screen Monitor with 24/7 cutomer support and best after sales service.
Details Specifications
Screen Diagonal (Inch/cm)
17/43.27
Aspect ratio
5:4
Brightness (cd/m²)
250
Contrast
1000:1
Physical resolution
1280×1024
Typical Reaction Time Tr/ Tf (ms)
3.8/1.2
Visual Angle Horizontal / Verticle
170/160
LED Backlight Lifetime
30,000 (Hours)
Touch Technology
Projected Capacitive 10-point Multitouch
Touch Panel Drivers
Windows; Linux; Mac; Android
Touch Life (Contacts)
Unlimited
Surface Hardness
7H
Glass Strengthening
Tempered glass
Operating Temperature (°C)
-10 - +60
Humidity Range (RH)
10%-90%
Net Weight(Kg)
3.6 kg
Gross Weight(Kg)
6.10 (Incl.cartonage)
Housing Material
Aluminum front/back case
Housing(mm)L x W x H
392.2 x 327.5 x 42.8

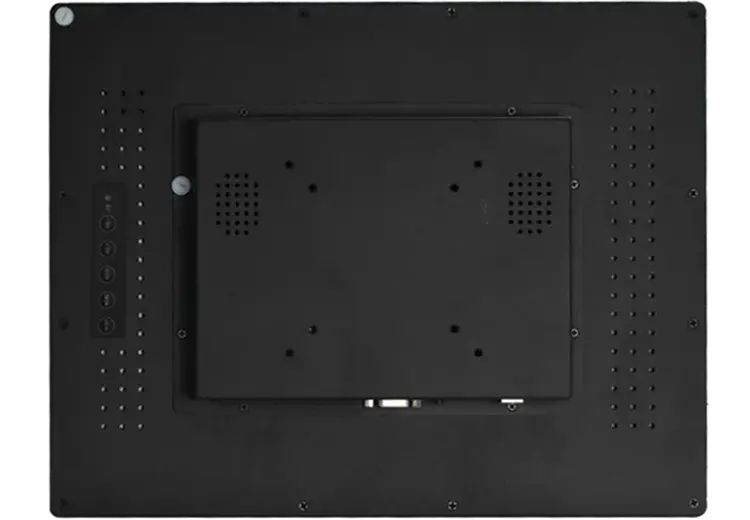

Mounting
VESA 100
Power Indicator
Green LED
Power Supply
100-240V ACDC active switching;12V DC-Out
Working Power (V)
12
Working Power (w)
15
Stand-By Consumption
<1

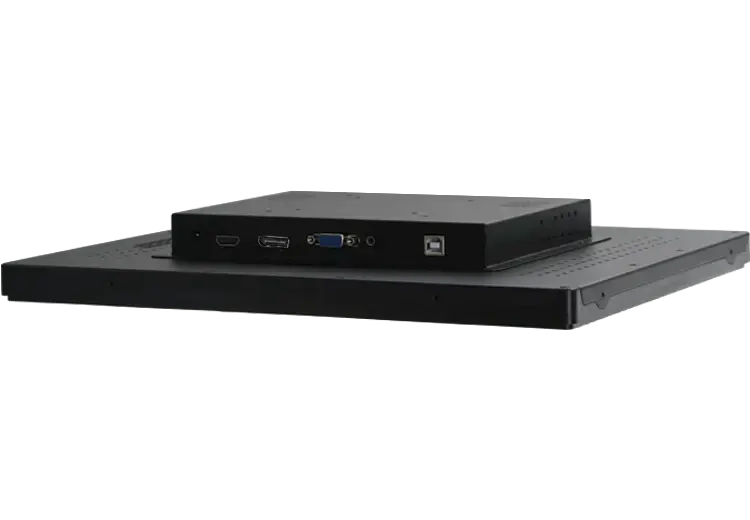

Video
1x HDMI 1.3 (incl. HDCP) 1x DVI-D 1x VGA
Audio
1x PC-Audio
Touch Connector
1x USB
Connectors
1x Serial 1x 12V DC-In
IP Rating
IP65 Front / IP40 Back
Power Adapter
HDMI
USB Touch
Power Cable
