Features
Reasons to Choose Our 21.5 Inch Open Frame Touch Screen Monitor

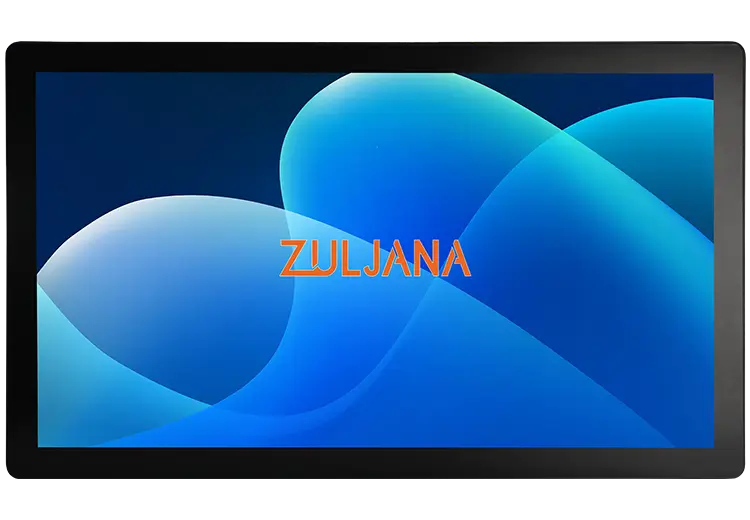

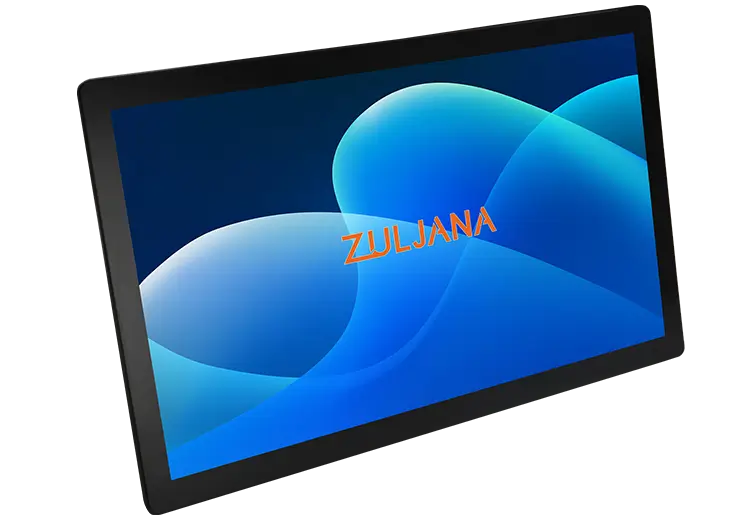

21.5 Inch Open Frame Touch Screen Monitor with 1920×1080 resolution, anti-glare tempered glass, and IP65 front protection is perfect for indoor use. Ideal for retail stores, kiosks, and automation systems in Germany, France, and the Netherlands. The 10-point multitouch offers smooth and accurate user experience.
Designed for European industries, this monitor includes VESA mounting, aluminum casing, and wide viewing angles. Fast support is available through our European RMA office, ensuring quick service in Poland, Spain, and Italy. A trusted solution for commercial and industrial display needs across Europe. BaoBao Technology also offers a 21.5 Inch Outdoor Open Frame Touch Screen Monitor.
Display Characteristics
| Screen Diagonal (Inch/cm) | 21.5/54.62 |
| Aspect ratio | 16:9 |
| Brightness | 250 (cd/m²) |
| Contrast | 1000:1 |
| Physical resolution | 1920x1080 |
| Typical Reaction Time Tr/ Tf (ms) | 7/7 |
| LED Backlight Lifetime | 100,000 (Hours) |
| Visual Angle Horizontal / Verticle | 178/178 |
Touch Panel
| Touch Technology | Projected Capacitive 10-point Multitouch |
| Touch Panel Drivers | Windows; Linux; Mac; Android |
| Touch Life (Contacts) | Unlimited |
| Surface Hardness | 7H |
| Surface Treatment | Anti-glare（optional） |
| Glass Strengthening | Tempered glass in 21.5 Inch Open Frame Touch Screen Monitor |
IP Rating
| IP Rating | IP65 Front / IP40 Back |
Operation/Mechanical
| Operating Temperature (°C) | -10 - +60 |
| Humidity Range (RH) | 10%-90% |
| Net Weight(Kg) | 5.00 |
| Gross Weight(Kg) | 7.30 (incl. cartonage) |
| Housing Material | Aluminum |
| Housing(mm)L x W x H | 517 X 312 X 42 |

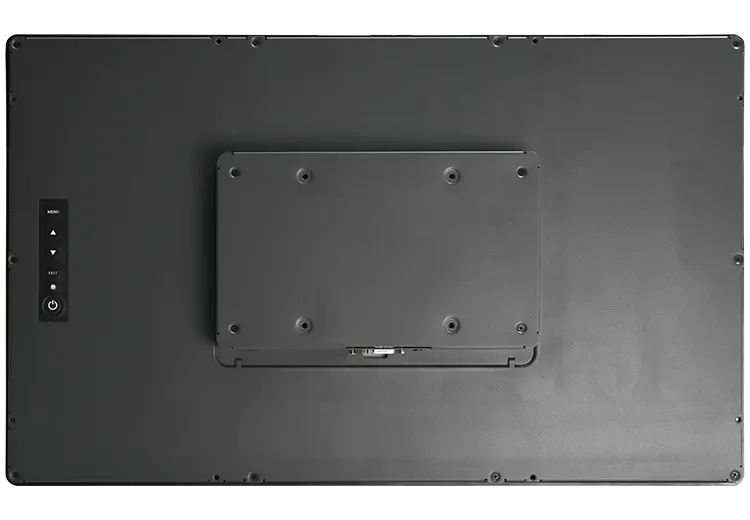

| Mounting | VESA 100 |
Power
| Power Indicator | Green LED |
| Power Supply | 100-240V ACDC active switching;12V DC-Out |
| Working Power (V) | 12 |
| Working Power (w) | 28 |
| Stand-By Consumption | <1 |

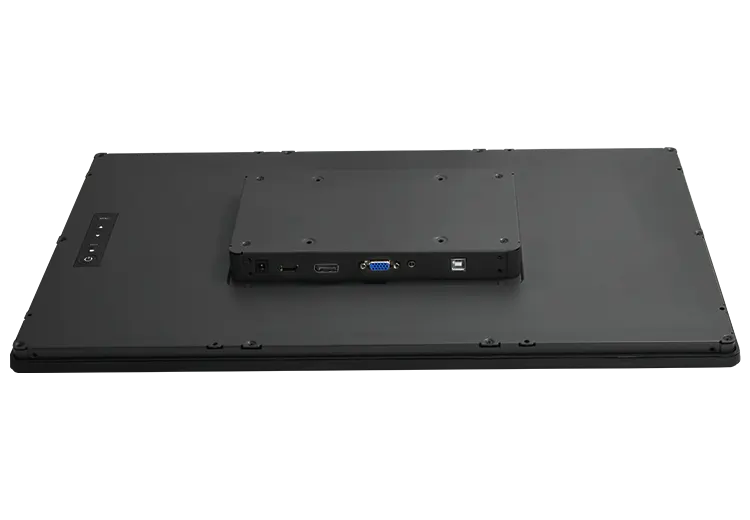

External Connectors
| Video | 1x HDMI 1.3 (incl. HDCP) 1x DVI-D 1x VGA |
| Audio | lxPC-Audio |
| Touch Connector | lxUSB |
| Connectors | 1x Serial 1x 12V DC-In |
Included in the delivery
| Power Adapter |
| HDMI |
| USB Touch |
| Power Cable |
