Model No: ZL215TMCAP-OD
21.5" Outdoor Open Frame Touch Screen Monitor
Reasons to Choose Our 21.5 Inch Outdoor Open Frame Touch Screen Monitor
21.5 inch outdoor open frame touch screen monitor with high brightness, anti-glare tempered glass, and IP65 front protection is perfect for sunlight-readable applications. Ideal for outdoor kiosks, ticket machines, and digital signage in Germany, France, and the Netherlands. The 10-point multitouch ensures smooth interaction in all weather conditions.
With strong aluminum housing, optical bonding, and wide viewing angles, it meets the needs of European cities like Warsaw, Madrid, and Milan. VESA mounting and compatibility with Windows, Linux, and Android make installation easy. Fast service is available through our European RMA office for reliable business support. BaoBao Technology also offers a 27 Inch outdoor Open Frame Touch Screen Monitor.
Details Specifications
Display Characteristics
| Screen Diagonal (Inch/cm) | 21.5/54.48 |
| Aspect ratio | 16:9 |
| Brightness | 1000 (cd/m²) |
| Contrast | 1000:1 |
| Physical resolution | 1920×1080 |
| Reaction Time (Tr/Tf) | 2/6 |
| LED Backlight Lifetime | 40000 (hours) |
| Visual Angle | 178 (H)/178 (V) |
| Others | Optical Bonding, UV/IR Filter |
Touch Panel
| Touch Technology | Projected Capacitive 10-point Multitouch |
| Touch Panel Drivers | Windows; Linux; Mac; Android |
| Touch Life (Contacts) | Unlimited |
| Surface Hardness | 7H |
| Surface Treatment | Optical Bonding + Anti-Glare |
| Glass Strengthening | Tempered glass |
IP Rating
| IP Rating | IP65 Front / IP40 Back |
Operation/Mechanical
| Operating Temperature ('C) | -10~+60 |
| Humidity Range (RH) | 10%-90% |
| Net Weight(Kg) | 5.00 |
| Gross Weight(Kg) | 6.00( Incl .ca rtonage) |
| Housing Material | Aluminum front/back case |
| Housing(mm)L x W x H | 517.44 × 313.31 × 46 |
| Mounting | VESA 100 |
Power
| Power Indicator | Green LED |
| Power Supply | 100-240V ACDC Active Switching; |
| Working Power (V) | 12 |
| Working Power (w) | 22 |
| Stand-By Consumption | <1 |

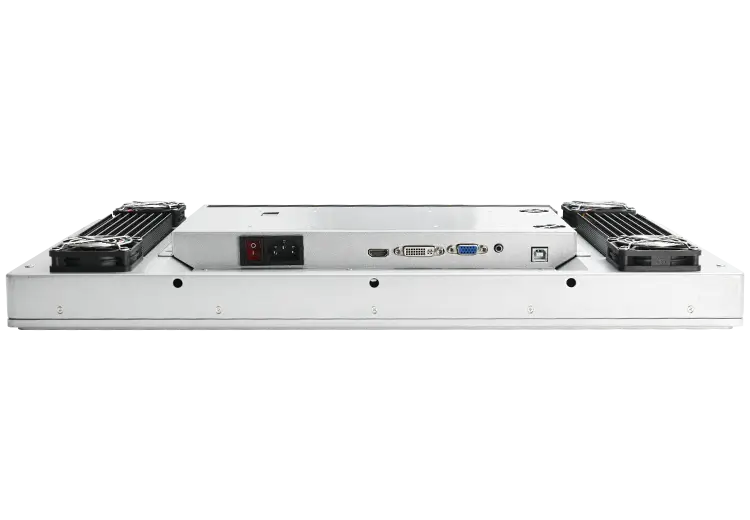

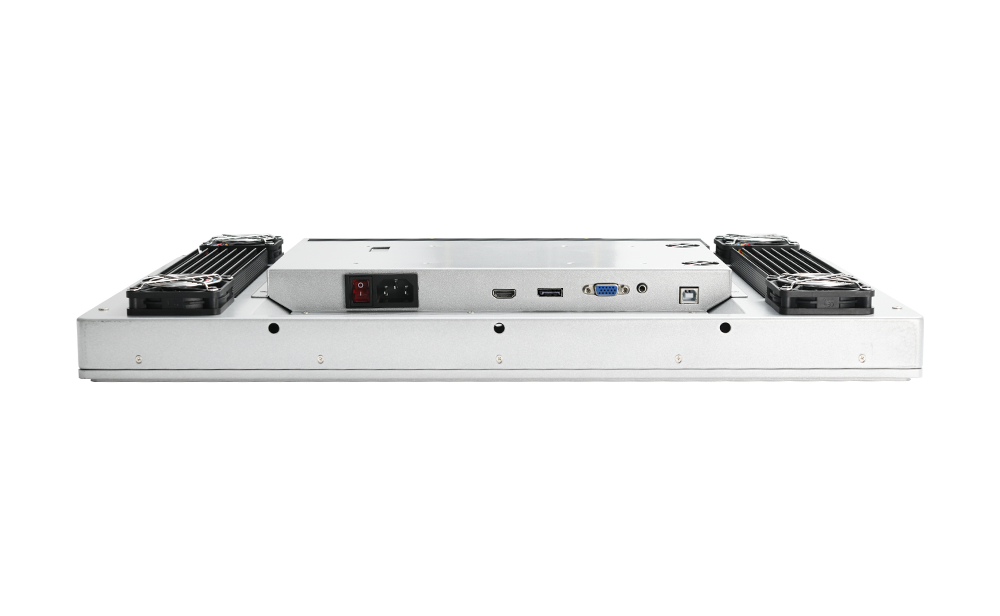

External Connectors
| Video | lxHDMI 1.3 (lncl.HDCP) |
| Audio | lxPC-Audio |
| Touch Connector | lxUSB |
| Connectors | lx12V DC-IN |
Included in the delivery
| Power Adapter |
| HDMI |
| USB Touch |
| Power Cable |
