Features
High-Performance
Barcode
Fanless
Wireless
Multi Touch
IP65
RFID
OS
Durable Touchscreens
HDMI

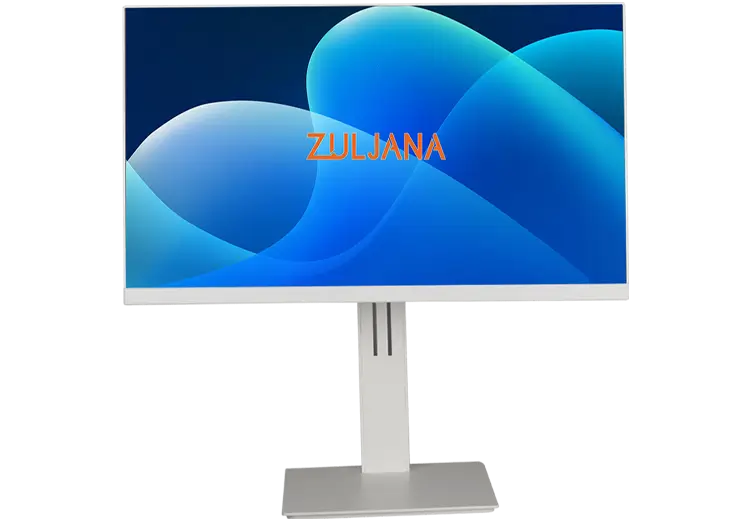

Reasons to Choose Our 24 Inch Industrial Panel PC
At BaoBao Technology, we offer a 24″ industrial touchscreen panel pc that comes with a fanless design that makes it durable enough to withstand harsh conditions, a durable touchscreen with tempered glass that makes it impact and scratches-free. 10-point capacitive multi-touch that gives you better touch experience even with gloves.
High-resolution display that offer 250 cd/m² brightness, high-performance processors, an Ip65 front and IP40 back rating that protect from dust and water, and an aluminum case that make it durable enough, in market-competitive prices. BaoBao Technology also offers after-sale services and a 27″ industrial panel pc.
Details Specifications
Display Characteristics
| Screen Diagonal (Inch/cm) | 23.6/59.94 |
| Aspect ratio | 16:9 |
| Brightness (cd/m²) | 250 |
| Contrast | 1000:1 |
| Physical resolution | 1920x1080 |
| Reaction Time (Tr/ Tf) | 1.5/3.5 |
| LED Backlight Lifetime (hours) | 20000 |
| Visual Angle | 178 (H)/178 (V) |
Touch Panel
| Touch Technology | Projected Capacitive 10-point Multitouch |
| Touch Panel Drivers | Windows; Linux; Mac; Android |
| Touch Life (Contacts) | Unlimited |
| Surface Hardness | 7H |
| Surface Treatment | Anti-glare（optional） |
IP Rating
| IP Rating | IP65 Front / IP40 Back |
Operation/Mechanical
| Operating Temperature | -10~+60 |
| Humidity Range (RH) | 10%-90% |
| Net Weight(Kg) | 1.80 |
| Gross Weight(Kg) | 2.50 ( Incl .ca rtonage) |
| Housing(mm)L x W x H | 579.4 X 347.0 X 57.5 |
| Mounting | VESA 100 |
| Housing Material | Aluminum front/back case |
Power
| Power Indicator | Green LED |
| Power Supply | 100-240V ACDC Active Switching |
| Working Power (V) | 12 |
| Working Power (w) | 16 |
| Stand-By Consumption | <1 |
PC System
| CPU | Intel® Core I3-3217U |
| Chipset | Intel® NM70 express chipset |
| Graphic/GPU | Intel® Graphics 4000 |
| Memory | 4GB DDR3L non-ECC |
| Storage | 64GB SSD |
| Network | 2 x Realtek PCIe GB LAN 8111G; W-LAN |
Included in the delivery
| Power Adapter |
| HDMI |
| USB Touch |
| Power Cable |
