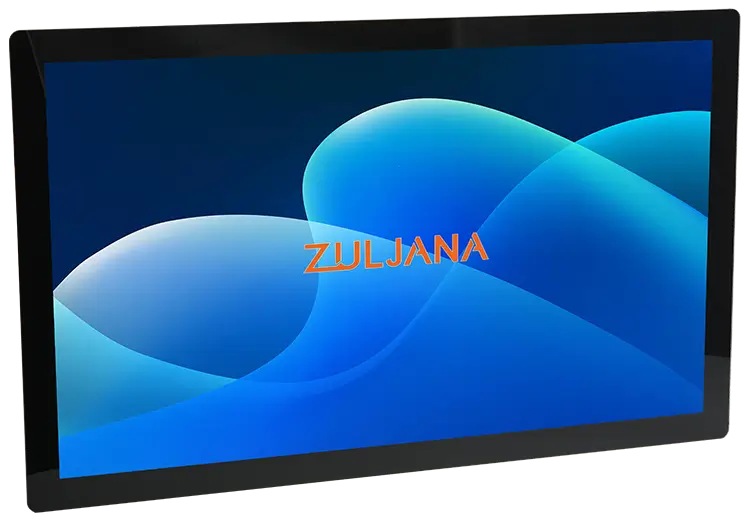

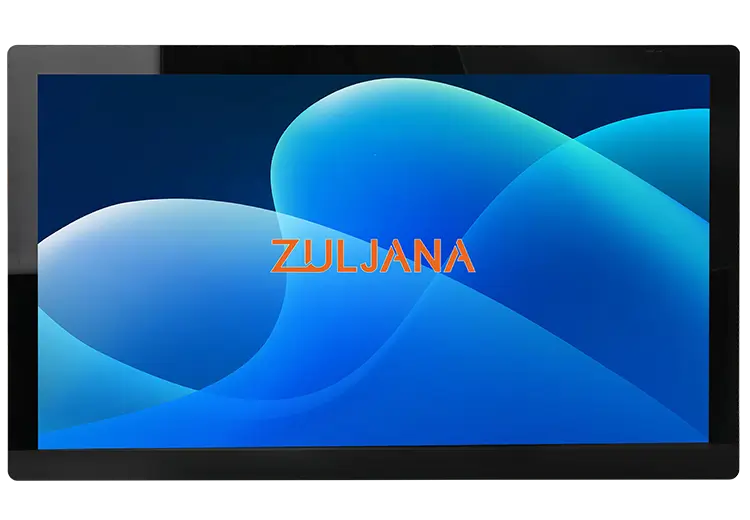

Why Choose Our 27 Inch Open Frame Touch Screen Monitor?
Designed for European industries, the 27 inch open frame touch screen monitor offers a full HD 1920×1080 resolution, anti-glare tempered glass, and 10-point multitouch technology. Built to handle harsh environments with IP65 front protection, it’s ideal for use in Germany, France, Italy, and beyond. Easy VESA mounting ensures smooth integration into any workspace.
Perfect for factories, kiosks, and digital signage across Europe, this monitor supports Windows, Linux, Mac, and Android. Strong aluminum housing, 3000:1 contrast ratio, and wide 178° viewing angles make it a durable and clear choice. With a local RMA office in Europe, fast service and support are always close by. You can also check our 32 Inch Open Frame Touch Screen Monitor.
Display Characteristics
| Screen Diagonal (Inch/cm) | 27/68.59 |
| Aspect ratio | 16:9 |
| Brightness | 300 (cd/m²) |
| Contrast | 3000:1 |
| Physical resolution | 1920x1080 |
| Reaction Time (Tr/Tf) | 7/5 |
| LED Backlight Lifetime | 30,000 (Hours) |
| Visual Angle Horizontal / Verticle | 178/178 |
Touch Panel
| Touch Technology | Projected Capacitive 10-point Multitouch |
| Touch Panel Drivers | Windows; Linux; Mac; Android |
| Touch Life (Contacts) | Unlimited |
| Surface Hardness | 7H |
| Surface Treatment | Anti-glare（optional） |
| Glass Strengthening | Tempered glass in 27 Inch Open Frame Touch Screen Monitor |
IP Rating
| IP Rating | IP65 Front / IP40 Back |
Operation/Mechanical
| Operating Temperature (°C) | -10 - +60 |
| Humidity Range (RH) | 10%-90% |
| Net Weight(Kg) | 5.50 |
| Gross Weight(Kg) | 6.50 (incl. cartonage) |
| Housing Material | Aluminum |
| Housing(mm)L x W x H | 390.31 × 652.81 × 53 |

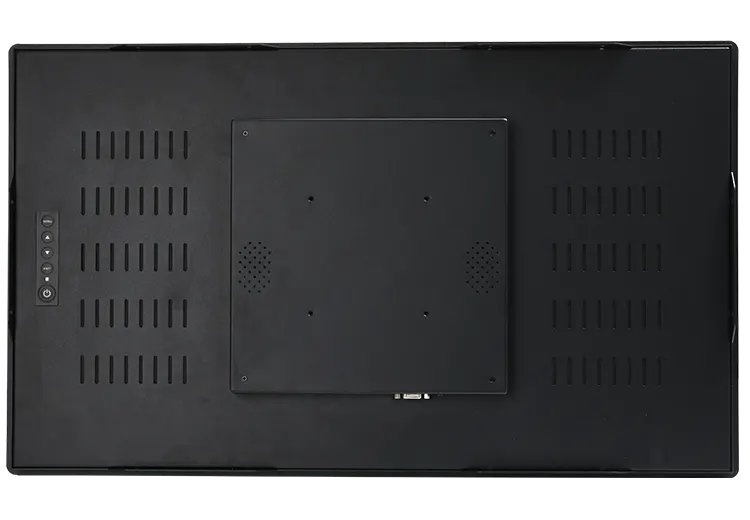

| Mounting | VESA 100 |
Power
| Power Indicator | Green LED |
| Power Supply | 100-240V ACDC active switching;12V DC-Out |
| Working Power (V) | 12 |
| Working Power (w) | 20 |
| Stand-By Consumption | <1 |
| Ordering information | 15.6” Open Frame Capacitive Touch Screen Monitor |

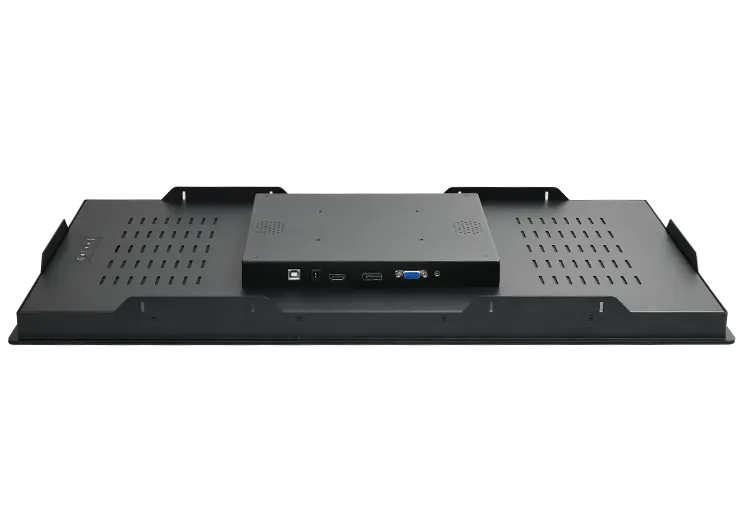

External Connectors
| Video | 1x HDMI 1.3 (incl. HDCP) 1x DVI-D 1x VGA |
| Audio | lxPC-Audio |
| Touch Connector | lxUSB |
| Connectors | 1x Serial 1x 12V DC-In |
| Included in the Delivery | Power Supply, Cables: HMDI, USB Touch |
Included in the delivery
| Power Adapter |
| HDMI |
| USB Touch |
| Power Cable |
