Capacitive Touch
Flat Design
1080P
10 Points
VESA
Anti-Glare (Optional)
Why Choose Our 27 Inch Open Frame Touch Screen Monitor?
Our 27″ industrial open-frame touchscreen monitors are an advanced solution for modern industries. We use a 10-point capacitive multi-touch screen, 1920×1080 high-resolution that provides you a smooth interactivity. While the durable aluminum frame and tempered glass make 27 open frame monitor strong enough to withstand harsh environments.
BaoBao Technology also offers competitive pricing and reliable after-sales service throughout Europe. You can also check our 32 Inch Open Frame Touch Screen Monitor.
Display Characteristics
| Screen Diagonal (Inch/cm) | 27/68.59 |
| Aspect ratio | 16:9 |
| Brightness | 300 (cd/m²) |
| Contrast | 3000:1 |
| Physical resolution | 1920x1080 |
| Reaction Time (Tr/Tf) | 7/5 |
| LED Backlight Lifetime | 30,000 (Hours) |
| Visual Angle Horizontal / Verticle | 178/178 |
Touch Panel
| Touch Technology | Projected Capacitive 10-point Multitouch |
| Touch Panel Drivers | Windows; Linux; Mac; Android |
| Touch Life (Contacts) | Unlimited |
| Surface Hardness | 7H |
| Surface Treatment | Anti-glare（optional） |
| Glass Strengthening | Tempered glass |
IP Rating
| IP Rating | IP65 Front / IP40 Back |
Operation/Mechanical
| Operating Temperature (°C) | -10 - +60 |
| Humidity Range (RH) | 10%-90% |
| Net Weight(Kg) | 5.50 |
| Gross Weight(Kg) | 6.50 (incl. cartonage) |
| Housing Material | Aluminum |
| Housing(mm)L x W x H | 390.31 × 652.81 × 53 |
| Mounting | VESA 100 |
Power
| Power Indicator | Green LED |
| Power Supply | 100-240V ACDC active switching;12V DC-Out |
| Working Power (V) | 12 |
| Working Power (w) | 20 |
| Stand-By Consumption | <1 |
| Ordering information | 15.6” Open Frame Capacitive Touch Screen Monitor |

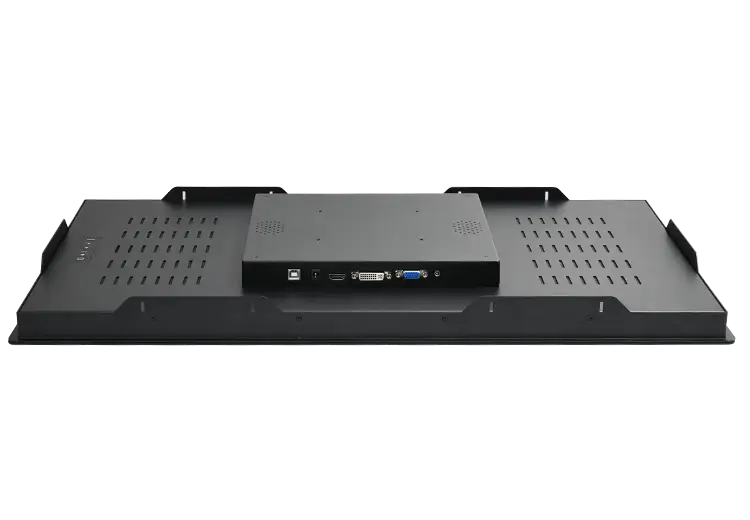

External Connectors
| Video | 1x HDMI 1.3 (incl. HDCP) 1x DVI-D 1x VGA |
| Audio | lxPC-Audio |
| Touch Connector | lxUSB |
| Connectors | 1x Serial 1x 12V DC-In |
| Included in the Delivery | Power Supply, Cables: HMDI, USB Touch |
Included in the delivery
| Power Adapter |
| HDMI |
| USB Touch |
| Power Cable |
