Capacitive Touch
Flat Design
1080P
10 Points
VESA
Anti-Glare (Optional)

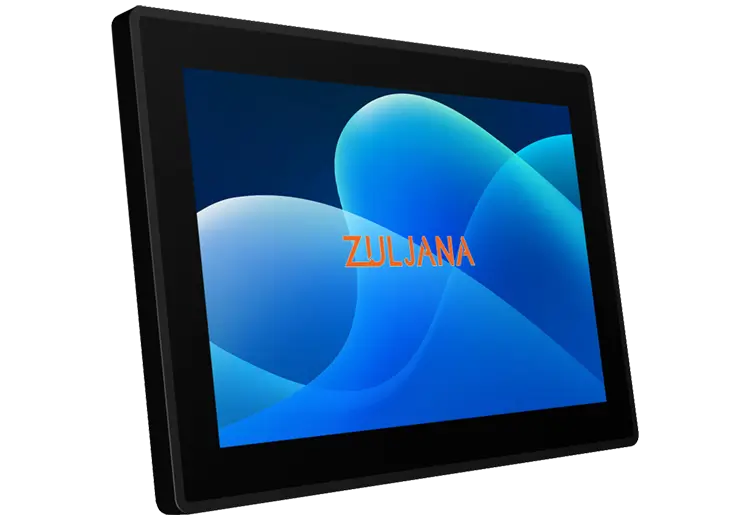

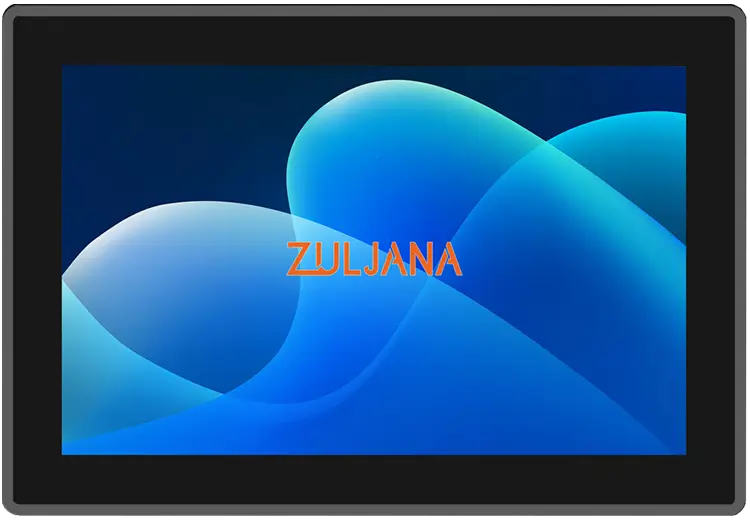

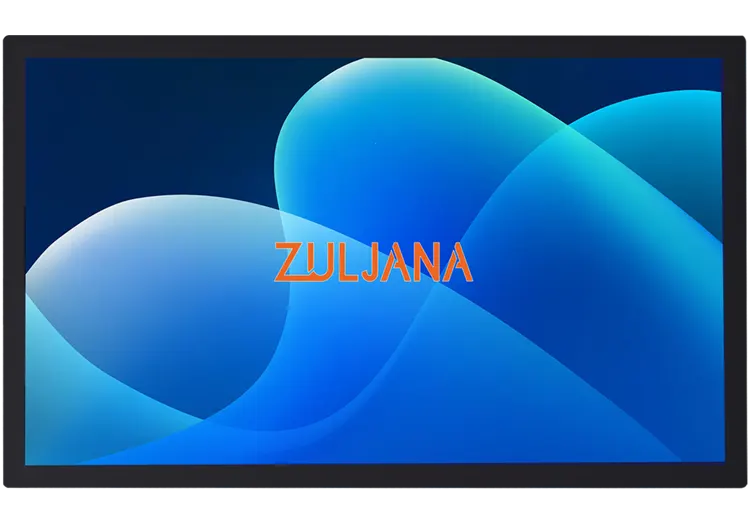

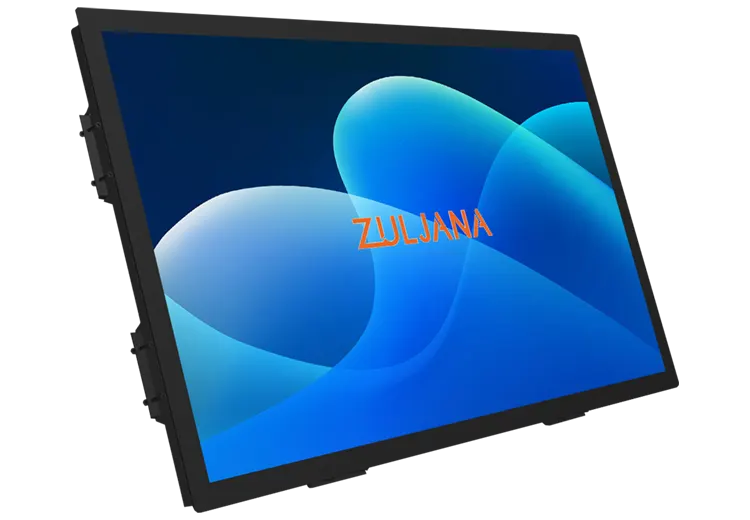

Why Choose Our 43 Inch Open Frame Touch Screen Monitor?
In our 43 open frame touch screen monitor you will get a high-resolution display with a high 500 cd/m² brightness and an impressive 3000:1 contrast ratio. It also has a 10-point capacitive multi-touch and robust tempered glass that enhances the durability of a 43″ industrial open-frame touchscreen monitor.
BaoBao Technology also offers competitive prices and amazing after-sale service.
Display Characteristics
| Screen Diagonal (Inch/cm) | 42.5/108.36 |
| Aspect ratio | 16:9 |
| Brightness | 500 (cd/m²) |
| Contrast | 3000:1 |
| Physical resolution | 1920×1080 |
| Reaction Time (Tr/Tf) | 15/15 |
| LED Backlight Lifetime | 100,000 (Hours) |
| Visual Angle | 179/179 |
Touch Panel
| Touch Technology | Projected Capacitive 10-point Multitouch |
| Touch Panel Drivers | Windows; Linux; Mac; Android |
| Touch Life (Contacts) | Unlimited |
| Surface Hardness | 7H |
| Surface Treatment | Anti-glare（optional） |
| Glass Strengthening | Tempered glass |
IP Rating
| IP Rating | IP65 Front / IP40 Back |
Operation/Mechanical
| Operating Temperature | -10~+60 |
| Humidity Range (RH) | 10%-90% |
| Net Weight(Kg) | 23.00 |
| Gross Weight(Kg) | 35.00 (incl. cartonage) |
| Housing Material | Aluminum |
| Housing(mm)L x W x H | 1003.4 × 591.62 × 72.5 |

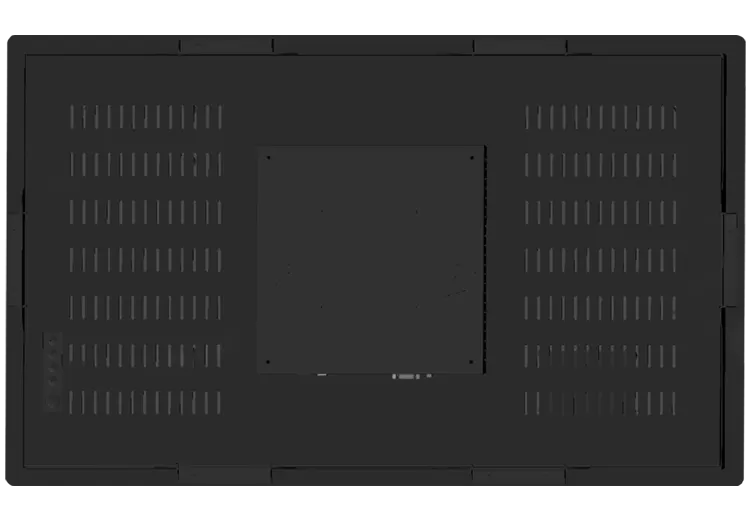

| Mounting | VESA 200 x 300 |
Power
| Power Indicator | Green LED |
| Power Supply | 100-240V ACDC Active Switching |
| Working Power (V) | 24 |
| Working Power (w) | 96 |
| Stand-By Consumption | <1 |

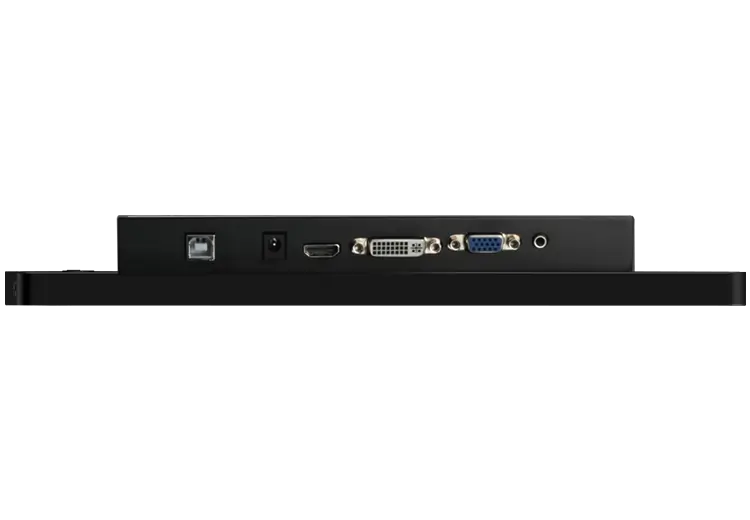

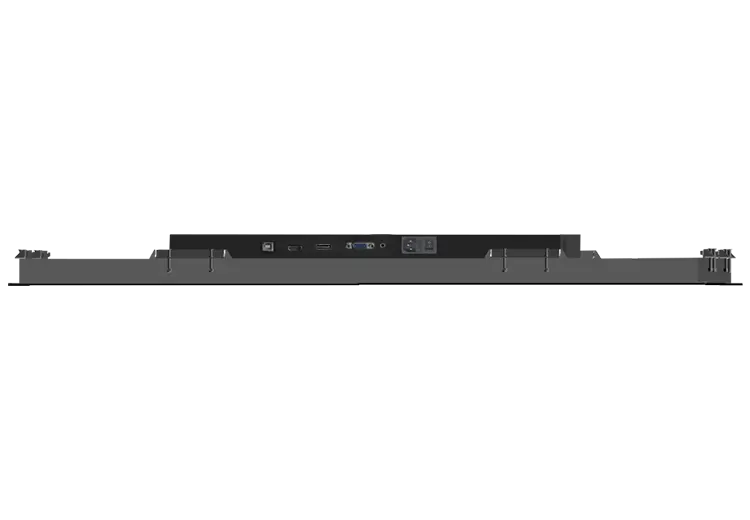

External Connectors
| Video | 1x HDMI 1.3 (incl. HDCP) 1x DVI-D 1x VGA |
| Audio | 1x PC-Audio |
| Touch Connector | lxUSB |
| Connectors | 1x Serial 1x 12V DC-In |
| Included in the Delivery | Power Supply, Cables: HMDI, USB Touch |
Included in the delivery
| Power Adapter |
| HDMI |
| USB Touch |
| Power Cable |
