															Features
High-Performance
Barcode
Fanless
Wireless
Multi Touch

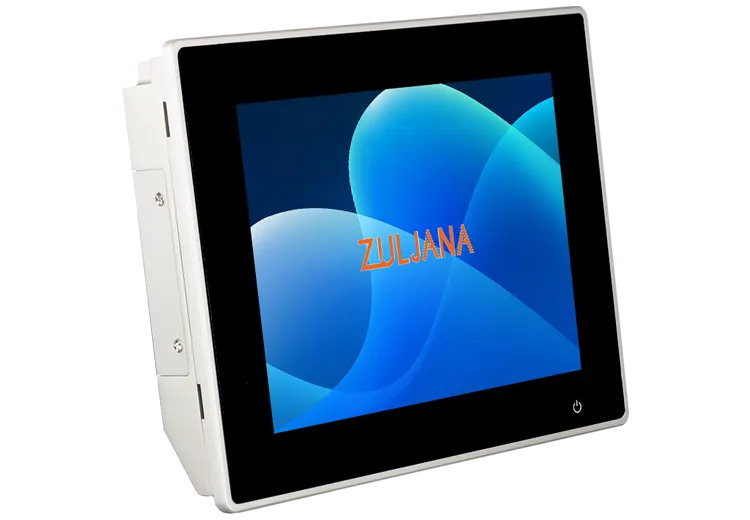

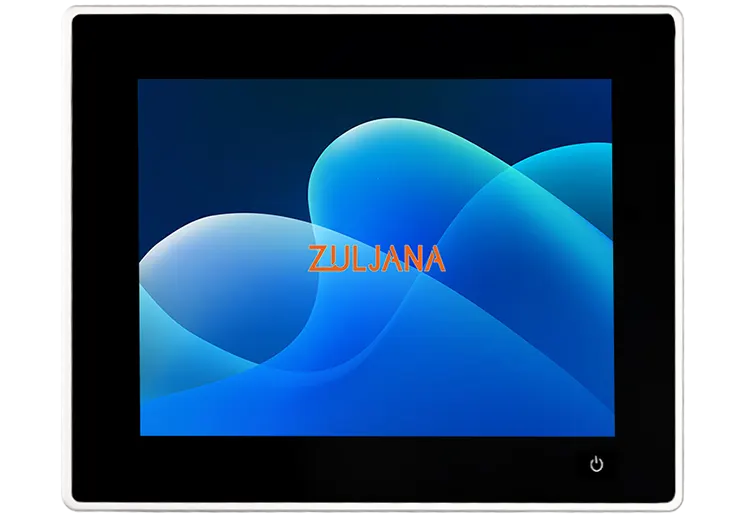

Reasons to Choose Our 8 Inch Industrial Panel PC
Get ready to enhance your industry work experience with our 8 Inch Industrial Panel PC. BaoBao Technology offers a durable touchscreen with capacitive multi-touch, IP65 front, and IP40 back ratings, a high-resolution display that offers 300 cd/m² brightness with a 20000(hours) LED backlight lifetime.
The aluminum front and back case, pre-installed Windows 10, and fanless touch screen pc reduce power consumption, making it a completely high-tech device. BaoBao Technology also offers market-competitive prices and after-sale services throughout Europe. You can also check out our 10.1″ industrial fanless panel pc.
Details Specifications
					 Display Characteristics





				| Screen Diagonal (Inch/cm) | 8/20.32 |
| Aspect ratio | 4:3 |
| Brightness | 300 (cd/m²) |
| Contrast | 700:1 |
| Physical resolution | 1024×768 |
| Reaction Time (Tr/Tf) | 6/14 |
| LED Backlight Lifetime | 20,000 (hours) |
| Visual Angle | 150 (H)/150 (V) |
| Chipset | Intel® NM70 express chipset |
					 Touch Panel





				| Touch Technology | Projected Capacitive 10-point Multitouch |
| Touch Panel Drivers | Windows; Linux; Mac; Android |
| Touch Life (Contacts) | Unlimited |
| Surface Hardness | 7H |
| Surface Treatment | Anti-glare(optional)In 8 Inch Industrial Panel PC |
					 IP Rating





				| IP Rating | IP65 Front / IP40 Back |
					 Operation/Mechanical





				| Operating Temperature | -10~+60 (‘C) |
| Humidity Range (RH) | 10%-90% |
| Net Weight(Kg) | 1.6 |
| Gross Weight(Kg) | 2.2 ( Incl .ca rtonage) |
| Housing Material | Aluminum front/back case |
| Housing(mm)L x W x H | 201.0 × 160.5 × 46.7 |
| Mounting | VESA 100 |
					 Power





				| Power Indicator | Green LED |
| Power Supply | 12V DC |
| Working Power (V) | 12 |
| Working Power (w) | 14 |
| Stand-By Consumption | <1 |
					 PC System





				| CPU | Intel® Celeron® J6412 |
| Graphic/GPU | Intel® Graphics 4000 |
| Network | 2 x Realtek PCIe GB LAN 8111G; W-LAN |
| 8GB RAM | 8GB RAM |
| Storage | 128GB SSD |
					 Included in the delivery





				| Power Adapter |
| HDMI |
| USB Touch |
| Power Cable |
