Features
Capacitive Touch
Flat Design
1080P
10 Points
VESA
Anti-Glare (Optional)

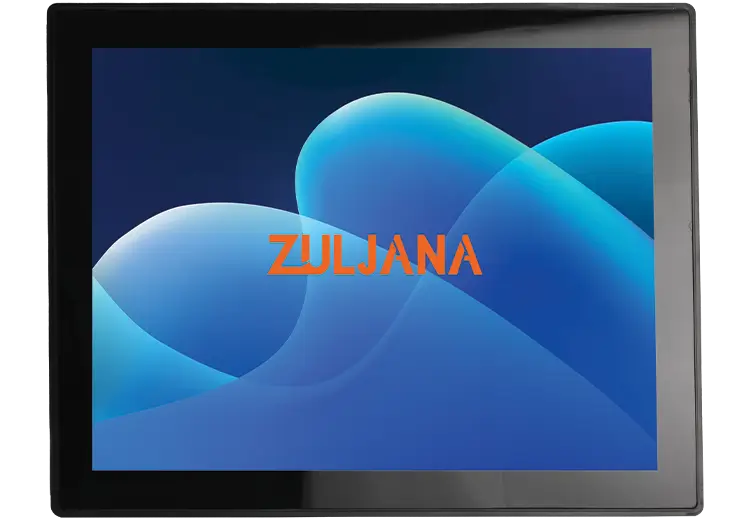

Reasons to Choose Our 17 Inch Open Frame Touch Screen Monitor
At BaoBao Technology, our 17 inch open frame monitor is based on a visualization module. We use a durable aluminum frame and tempered glass that enhance its durability to handle the harsh environment of industries.
In our Open frame monitor 17 inches we use a 10-point multi-touch capacitive, high-resolution display (1280×1024) with a 5:4 aspect ratio and a flat design. BaoBao Technology also offers a 21.5 Inch Open Frame Touch Screen Monitor with 24/7 cutomer support and best after sales service.
Display Characteristics
| Screen Diagonal (Inch/cm) | 17/43.27 |
| Aspect ratio | 5:4 |
| Brightness (cd/m²) | 250 |
| Contrast | 1000:1 |
| Physical resolution | 1280×1024 |
| Typical Reaction Time Tr/ Tf (ms) | 3.8/1.2 |
| LED Backlight Lifetime | 30,000 (Hours) |
| Visual Angle Horizontal / Verticle | 170/160 |
Touch Panel
| Touch Technology | Projected Capacitive 10-point Multitouch |
| Touch Panel Drivers | Windows; Linux; Mac; Android |
| Touch Life (Contacts) | Unlimited |
| Surface Hardness | 7H |
| Glass Strengthening | Tempered glass |
IP Rating
| IP Rating | IP65 Front / IP40 Back |
Operation/Mechanical
| Operating Temperature (°C) | -10 - +60 |
| Humidity Range (RH) | 10%-90% |
| Net Weight(Kg) | 3.6 kg |
| Gross Weight(Kg) | 6.10 (Incl.cartonage) |
| Housing Material | Aluminum front/back case |
| Housing(mm)L x W x H | 392.2 x 327.5 x 42.8 |
| Mounting | VESA 100 |
Power
| Power Indicator | Green LED |
| Power Supply | 100-240V ACDC active switching;12V DC-Out |
| Working Power (V) | 12 |
| Working Power (w) | 15 |
| Stand-By Consumption | <1 |

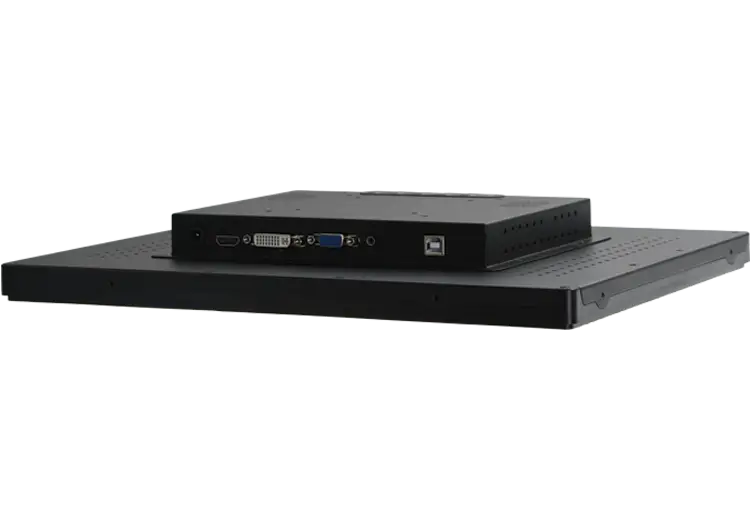

External Connectors
| Video | 1x HDMI 1.3 (incl. HDCP) 1x DVI-D 1x VGA |
| Audio | lxPC-Audio |
| Touch Connector | lxUSB |
| Connectors | 1x Serial 1x 12V DC-In |
Included in the delivery
| Power Adapter |
| HDMI |
| USB Touch |
| Power Cable |
